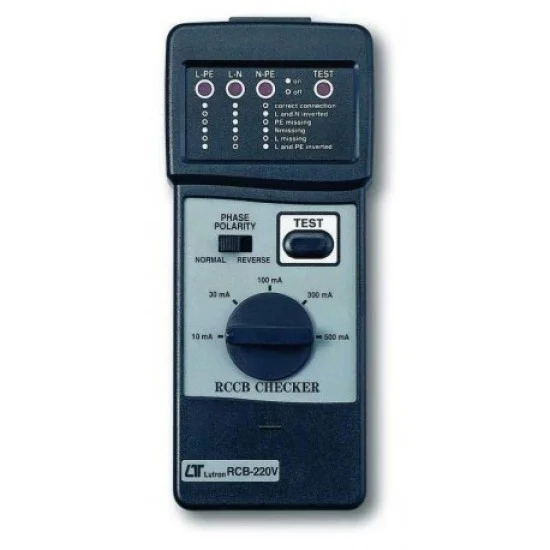

The latest Lutron RCB-220V RCCB/ELCB Checker price in Pakistan is Rs. 112,000/- updated on July 23, 2026.
FEATURES:
- Residual current circuit breaker test for tripping currents from 10 to 500mA.
- Residual current circuit breaker test at 5 residual (tripping) rated currents: 10mA, 30mA, 100mA, 300mA, 500mA.
- Checking the correct wiring of single-phase network sockets – signaling via 3 LEDs.
- Operation without own power source – power consumption directly from the network.
- Signaling (LED) when the switching-off pulse appears.
- Detection of phase conductor with the possibility of phase inversion (switch) after connecting the tester.
- Small dimensions and light weight, impact resistant ABS housing.
- For quick checking of the pin assignment of a safety socket, as well as for verification of RCCB with the 5 rated trip current settings of 10 mA, 30 mA, 100 mA, 300 mA and 500 mA.
- Phase detection and phase inversion.
- Indication of plug assignment via 3 LEDs.
- Display of trip pulse current for residual currents.
- Operates without battery, direct power supply from the mains socket being tested.
Documents:
Display Specification
| Display | 3 LEDs for pin assignment of sockets L-N, L-PE, N-PE. 1 LED for tripping current pulse. (L-Line, N-Neture, PE-Power Earth) |
Summary
| Weight | 200 g/0.44 LB |
TECHNICAL SPECIFICATION
| Operating Humidity | Less than. 80% RH. |
General Specification
| Operating Temperature | 0 to 50℃ ( 32 to 122℉ ). |
| Dimension | 180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch). |
