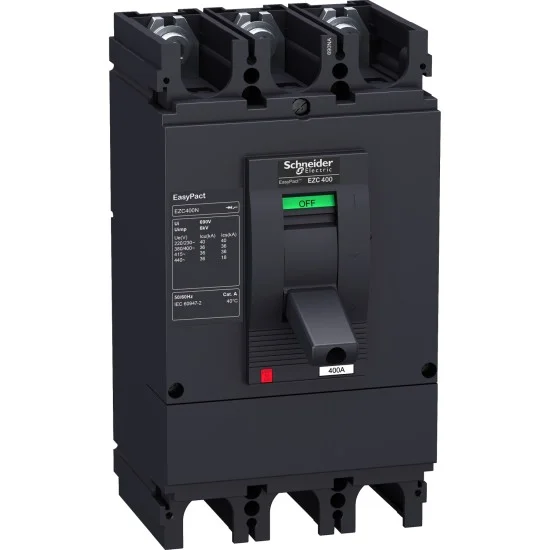

Schneider Circuit Breaker TMD EZC630N3500N
₨48,100.00
The latest Schneider Circuit Breaker TMD EZC630N3500N price in Pakistan is Rs. 48,100/- updated on July 23, 2026.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:
Current AC
| [In] rated current | 630 A ( 40°C ) |
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -35…85°C |
HARDWARE FEATURES
| IK Degree of Protection | IK07 conforming to EN 50102 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | AC. DC |
| Protection Type | Overload protection Short-circuit protection |
| Trip Unit Name | TM-D |
| Trip Unit Rating | 500 A ( 50°C ) |
Type
| product or component type | Circuit breaker |
General Specification
| Connection pitch | 25 mm |
| Control Type | Toggle |
| Electrical Durability | Category A : 3000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical Durability | 10000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 3P |
| Protected Poles Description | 3t |
| [Ue] Rated Operational Voltage | 250 V DC conforming to IEC 60947-2 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
