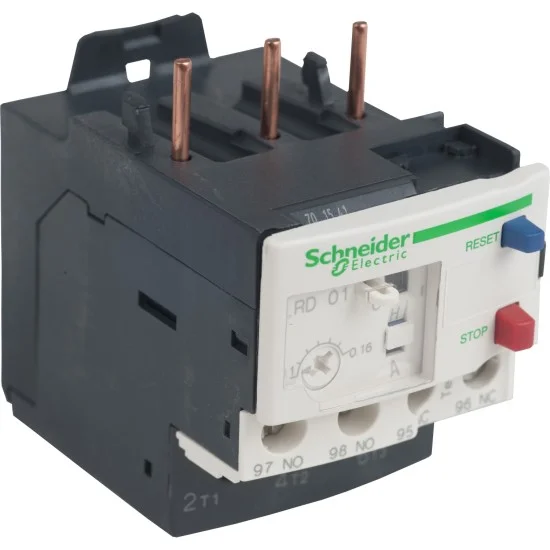

Schneider LRD05 TeSys LRD Overload Relays
₨3,360.00
The latest Schneider LRD05 TeSys LRD Overload Relays price in Pakistan is Rs. 3,360/- updated on July 23, 2026.
OVERVIEW:
Product Compatibilities:
- LC1D09
- LC1D12
- LC1D18
- LC1D25
- LC1D32
- LC1D38
Documents:
Summary
| Range | TeSys |
HARDWARE FEATURES
| Network Type | DC AC |
Type
| product or component type | Differential thermal overload relay |
General Specification
| Control Type | Red push-button stop Blue push-button for reset mode |
| Network Frequency | 0…400 Hz |
| Tightening Torque | Control circuit : 1.7 N.m on screw clamp terminals Power circuit : 1.7 N.m on screw clamp terminals |
| weight | 0.124 kg |
| [Ue] Rated Operational Voltage | 690 V AC 0…400 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 600 V power circuit conforming to CSA 600 V power circuit conforming to UL 690 V power circuit conforming to IEC 60947-4-1 |
There are no reviews yet.
