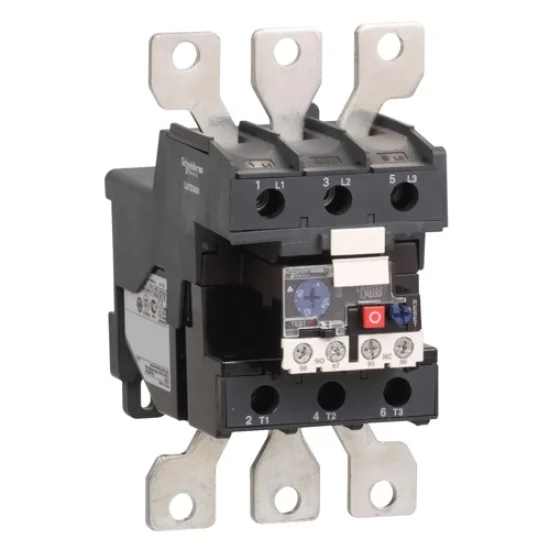

Schneider LRD33696 TeSys LRD 110…140 A Overload Relays
₨18,200.00
The latest Schneider LRD33696 TeSys LRD 110...140 A Overload Relays price in Pakistan is Rs. 18,200/- updated on July 23, 2026.
OVERVIEW:
Product Compatibilities:
- LC1D115
- LC1D150
Connection – Terminals:
- Power circuit : screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end
- Power circuit : screw clamp terminals 1 cable(s) 4…50 mm² flexible without cable end
- Power circuit : screw clamp terminals 1 cable(s) 4…50 mm² solid without cable end
Documents:
Schneider LRD33696 TeSys LRD 110…140 A Overload Relays Data Sheet.pdf
Summary
| Height | 123 mm |
| Range | TeSys |
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting Support | Plate with specific accessories. Rail with specific accessories. Under contactor |
| Network Type | DC AC |
Type
| product or component type | Differential thermal overload relay |
General Specification
| Control Type | Red push-button stop Blue push-button for reset mode |
| Network Frequency | 0…400 Hz |
| Tightening Torque | Control circuit : 1.7 N.m on screw clamp terminals Power circuit : 9 N.m on screw clamp terminals |
| weight | 1 kg |
| [Ue] Rated Operational Voltage | 690 V AC 0…400 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 1000 V power circuit conforming to IEC 60947-4-1 |
| Adjustable detection range | 110…140 A |
