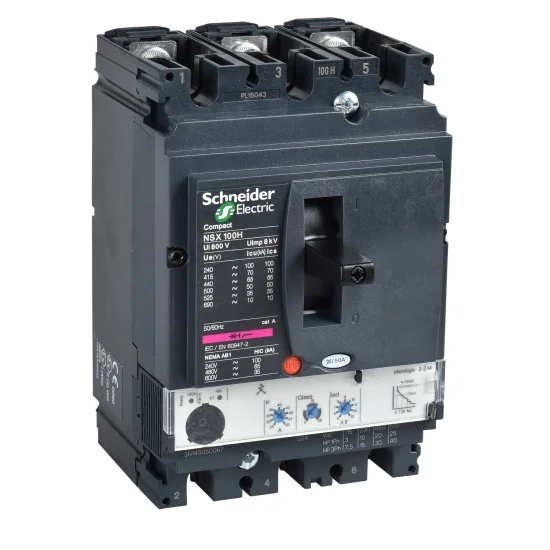

Schneider NSX100H Micrologic 100A 3Pole Compact Circuit Breaker
₨35,100.00
The latest Schneider NSX100H Micrologic 100A 3Pole Compact Circuit Breaker price in Pakistan is Rs. 35,100/- updated on July 23, 2026.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Current AC
| [In] rated current | 100 A ( 40°C ) |
Summary
| Height | 161 mm |
| Range | Compact |
HARDWARE FEATURES
| Auxiliary Contact Composition | Without |
| Depth | 86 mm |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Number of Poles | 4 Poles |
| Protection Type | Overload protection (thermal) L Short-circuit protection (magnetic) I |
| Standards | EN/IEC 60947 UL 508 |
| Trip Unit Rating | 100 A ( 40°C ) |
| Weight | 2.05 kg |
Type
| product or component type | Circuit breaker |
General Specification
| Control Type | Toggle |
| Mechanical Durability | 40000 cycles |
| Network Frequency | 50/60 Hz |
| Protected Poles Description | 4t |
| Width | 105 mm |
| [tr] Long-time Delay Adjustment Range | 11 s 7.2 x Ir 16 s 6 x Ir 400 s 1.5 x Ir |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
