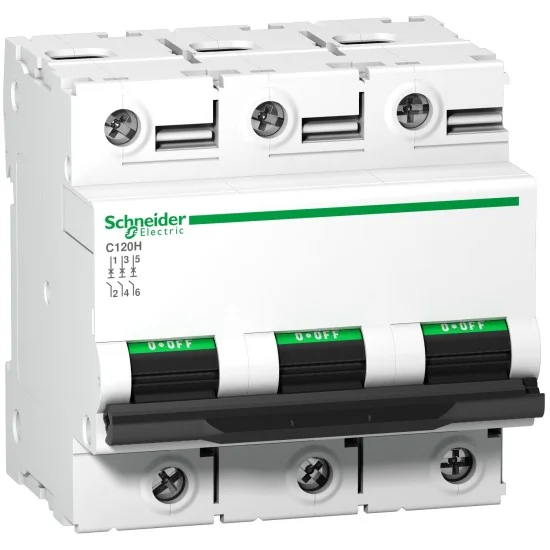

Schneider C120H C Curve 3 Pole Miniature Circuit Breaker
The latest Schneider C120H C Curve 3 Pole Miniature Circuit Breaker price in Pakistan is Call for Price updated on July 23, 2026.
FEATURES:
- Acti9 C120H 3P Miniature Circuit breaker – A9N18467 63A
- Acti9 C120H 3P Miniature Circuit breaker – A9N18468 80A
- Acti9 C120H 3P Miniature Circuit breaker – A9N18469 100A
- Acti9 C120H 3P Miniature Circuit breaker – A9N18470 125A
Camera Specification
| Protection Level | IP20 conforming to IEC 60529 |
Capacitance
| Breaking capacity | 10 kA Icu conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz 15 kA Icu conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz 30 kA Icu conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz 15 kA Icu conforming to EN/IEC 60947-2 – <= 375 V DC 15000 A Icn conforming to EN/IEC 60898-1 – 230…400 V AC 50/60 Hz |
Current AC
| [In] rated current | 63A,80A, 100A, 125A |
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -40…85°C |
| Height | 81 mm |
| Range | Acti 9 |
HARDWARE FEATURES
| Depth | 73 mm |
| Network Type | AC |
| Standards | EN/IEC 60947-2 EN/IEC 60898-1 |
TECHNICAL SPECIFICATION
| Operating Altitude | 2000 m |
Type
| product or component type | Miniature circuit-breaker |
General Specification
| Connections – terminals | Tunnel type terminals 1.5…35 mm² flexible Tunnel type terminals 1…50 mm² rigid |
| Control Type | Toggle |
| Earth-Leakage Protection | Separate block |
| Electrical Durability | 5000 cycles conforming to IEC 60947-2 10000 cycles conforming to IEC 60947-2 (A9N18467) |
| Mechanical Durability | 20000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 4P |
| Tightening Torque | 3.5 N.m top or bottom |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Width | 81mm |
| Wire Stripping Length | 14 mm top or bottom |
| [Ics] Rated Service Breaking Capacity | 5 kA at 50 % of breaking cap. conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz 15 kA at 50 % of breaking cap. conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz 7.5 kA at 50 % of breaking cap. conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz 15 kA at 100 % of breaking cap. conforming to EN/IEC 60947-2 – <= 375 V DC 7500 A at 50 % of breaking cap. conforming to EN/IEC 60898-1 – 230…400 V AC 50/60 Hz |
| [Ue] Rated Operational Voltage | <= 375 V DC 220…240 V AC 50/60 Hz 380…415 V AC 50/60 Hz 440 V AC 50/60 Hz 230…400 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
