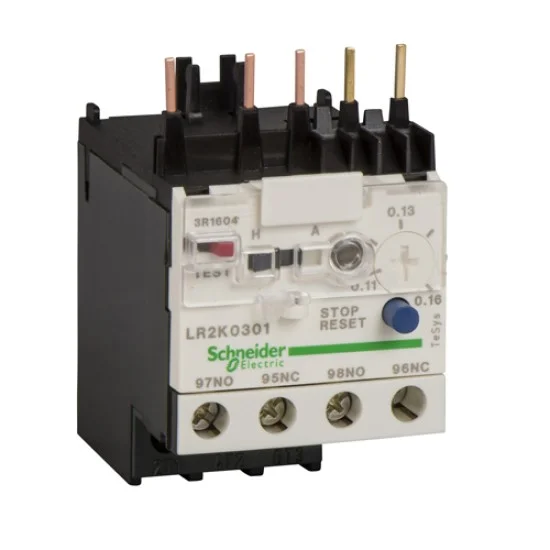

Schneider TeSys LR2K Thermal Overload Relays
The latest Schneider TeSys LR2K Thermal Overload Relays price in Pakistan is Call for Price updated on July 23, 2026.
OVERVIEW:
- Explore roshanex.pk to find out the latest Schneider products & other electronic components at discounted prices in Pakistan with free cash on delivery service across Pakistan. We are dealing Schneider in Pakistan.
Features:
- TeSys LR2K is a reliable series of thermal overload relays designed to cover the range of motor ratings up to 16 A. The devices can be combined with TeSys K contactors in a 45 mm wide space to form an extremely compact starter.
- Manual or automatic reset
- Sealable flap
- Prewiring kit available
- Terminal block for separate mounting
- Remote electrical reset
- Connector options
- Spring terminal
- Screw clamp
- Class 10 A
Benefits:
- TeSys LR2K thermal overload relays deliver outstanding performance, flexibility and reliability.
- Safe and effective protection
- Simple to install
- Integrated manual-automatic reset
- Can be combined with TeSys K contactors to form an extremely compact starter
Application:
- TeSys LR2K relays are used across industry, infrastructure, building, etc., to provide:
- Standard motor protection
- Line protection
- Protection against motor overload, stalling, and loss of phase
- Thermal relay is the perfect complement to circuit breaker to achieve the best protection: magnetic + thermal protection of a motor-starter
Documents:
POWER
| Ampere | 0.16…0.23 A |
Summary
| Range | TeSys |
HARDWARE FEATURES
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Network Type | DC AC |
| Product Compatibility | LC1K LC7K LP4K LP1K |
| Weight | 0.145 kg |
Type
| product or component type | Differential thermal overload relay |
General Specification
| Network Frequency | <= 400 Hz |
| Tightening Torque | 1.3 N.m – on screw clamp terminals – with screwdriver Philips No 2 1.3 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm |
| [Ue] Rated Operational Voltage | <= 690 V for power circuit 690 V AC AC-15 for signalling circuit 250 V DC DC-13 for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 600 V power circuit conforming to CSA C22.2 No 14 690 V power circuit conforming to BS 4941 690 V power circuit conforming to IEC 60947 750 V power circuit conforming to VDE 0110 group C |
