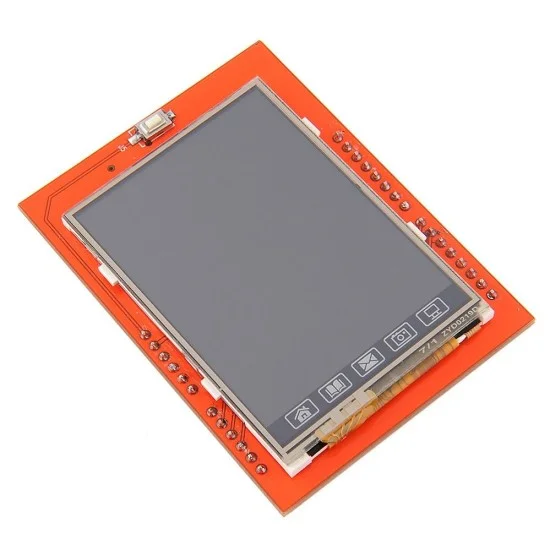

2.4 inch TFT LCD Shield SD Socket Touch Panel Module for Arduino UNO

The latest 2.4 inch TFT LCD Shield SD Socket Touch Panel Module for Arduino UNO price in Pakistan is Rs. 2,100/- updated on September 10, 2026.

OVERVIEW:

• The 2.4″ Colour TFT display with a micro SD card slot is now available as a SHIELD for Arduino UNO.
• It has a four-wire resistive touch screen, a micro SD card socket, a reset switch, and a convenient Arduino Uno shield footprint.

Features:

• 2.4-inch LCD TFT display has Bright, 4 white-LED backlights.
• Colorful, 18-bit 262,000 different shades
• 4-wire resistive touchscreen
• 240 x 320 resolution
• Spfd5408 controller with built-in video RAM buffer
• 8-bit digital interface, plus 4 control lines
• Uses digital pins 5-13 and analog 0-3. Digital pins 2, 3, and analog 4 and 5 are available for user-defined purposes. Pin 12 is available if micro SD is not used.
• 5V compatible can be used  with 3.3V or 5V logic
• Size: 71 x 52 x 7mm

Documents:

2.4 inch TFT LCD Shield SD Socket Touch Panel Module for Arduino UNO Data Sheet.pdf
