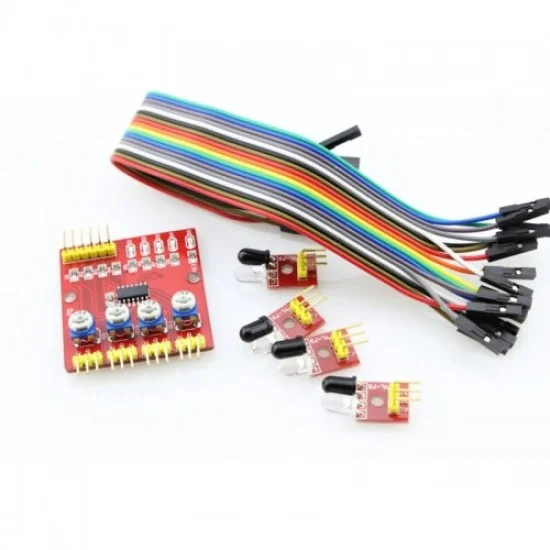

4-Way Obstacle Avoidance Car Sensor For Arduino
₨450.00
The latest 4-Way Obstacle Avoidance Car Sensor For Arduino price in Pakistan is Rs. 450/- updated on September 9, 2026.
OVERVIEW:
- The intelligent car or robot line (including black and white lines), walked along the black line path, also known as tracing.
- The intelligent car cliff avoidance, prevent fall off.
- The smart car obstacle avoidance
- Can be used in other automatic photoelectric reflex application.
Module Connection Details:
- The DO1-1 road TTL level output
- DO2-2 road TTL level output
- DO3-3 road TTL level output
- DO4-4 road TTL level output
- GND – connect power anode
- VCC – positive
Documents:
4-Way Obstacle Avoidance Car Sensor For Arduino Data Sheet.pdf
Summary
| Distance | 1 mm and 60 cm adjustable, the closer distance performance more stable, white reflection furthest distance. |
General Specification
| Current | try to choose more than 1 a power supply |
| Temperature | – 10°C – + 50°C |
| Voltage | 3.3 V to 5 V DC |
| Dimension | 44 mm x 30 mm x 8.5 mm (length x width x height) |
