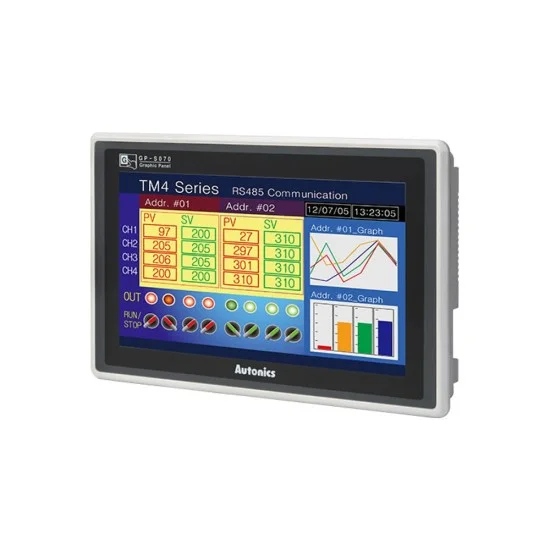

Autonics GP-S070-T9D6 Touch Screen Type Graphic Panel

The latest Autonics GP-S070-T9D6 Touch Screen Type Graphic Panel price in Pakistan is Call for Price updated on September 9, 2026.

OVERVIEW:

• The GP-S070 series graphic panels are 7-inch widescreen color LCD graphic HMIs with simple touchscreen operation and various user-friendly functions. The graphic panels allow control and monitoring of various devices connected via communication ports. Data logger function allows data storing and backup from control devices. Users can also monitor multiple addresses and channels simultaneously. Extensive image library is provided along with support for various fonts, printer, and bar code readers.
• GP-S070 Series realizes high visibility by adopting 7″ Wide TFT LCD monitor with True Color (16.7 million colors) and various data application ranges. In addition, analog touch type monitor allows more diverse tag arrangement possible comparing to matrix touch type; its data logger function makes possible to support various data collect and back-up, as well. Wide range of interface support including Ethernet and USB Host / Device is another feature of GP-S070 Series to increase user convenience.

Features:

• Adopts 7 inch wide TFT LCD for realizing True Color with 16,777,216 colors
• Analog touch method
• Free tag arrangement
• Data logger function
• Supports data gathering and backup of controller
• Supports variable image library
• Enables to monitor multi stations and multi channels at the same time
• Supports several interface
• Supports USB Host/Device to high speed download and manage files
• Easy to connect various external devices with Rs. 232C 2 ports and Rs. 232C/Rs. 422 multi-communication port
• Supports several fonts: Supports window true type and several bitmap fonts (selectable)
• Device monitoring function
• Enables to monitor/control variable of connected control through communication port
• Easy S/W upgrade available on website
• (1) GP firmware file
• (2) GP Editor (drawing program)
• (3) Additional protocol
• (4) Language and font, etc
• Connects printer/barcode reader: Enables to print out alarm history, to read barcode

Documents:

Autonics GP-S070-T9D6 Touch Screen Type Graphic Panel Data Sheet.pdf
