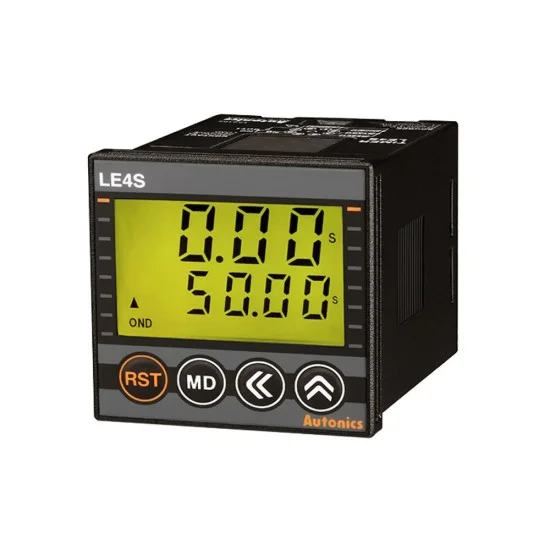

Autonics LE4S LCD Display Digital Timer

The latest Autonics LE4S LCD Display Digital Timer price in Pakistan is Rs. 44,000/- updated on September 9, 2026.

OVERVIEW:

• The LE4S series digital timers feature LCD Backlight display with compact, space-saving design. The timers also feature various output operation modes as well as configurable time setting range and one-shot output time for diverse applications. Users can configure set value and time range independently in flicker, flicker I, ON-OFF delay, and ON-OFF delay I modes.

Features:

• Various output mode
• Function setting with soft touch
• Minimum 10000000 operation mechanical life
• Minimum 100000 operations electrical life
• 100MΩ at 500VDC Insulation resistance
• 2000VAC at 50/60Hz for 1 minute dielectric strength
• Compact, space-saving design (W48×H48×L70mm)
• LCD backlight with ON/OFF function
• 13 output operation modes
• 11 time setting ranges
• Wide time setting range : 0.01s to 9999h
• Configure set value and time range independently (Flicker, flicker I, ON-OFF delay, ON-OFF delay I modes)
• One-shot output time : 0.01s to 99.99s
• 100ms reset time
• Key LOCK function
• Power supply : 24-240VAC 50/60Hz, 24-240VDC (AC/DC universal type)
• Time Ranges: (11 Selectable ranges):
• Sec                             Min                              Hr.
• 0.01–99.9 0.1sec–     99 min 59 sec 1 min –  99 hrs 59 min
• 0.1 –999.9 0.1sec–    999.9 min 0.01– 99.99
• 1.0 –9999 1 –             9999 min 0.1 – 999.9
• 1.0 –9999
• S 0 min 01 Sec ~ 99 min 59 Sec
• M 0 hour 01 min ~ 99 hour 59 min

Documents:

Autonics LE4S LCD Display Digital Timer Data Sheet.pdf
