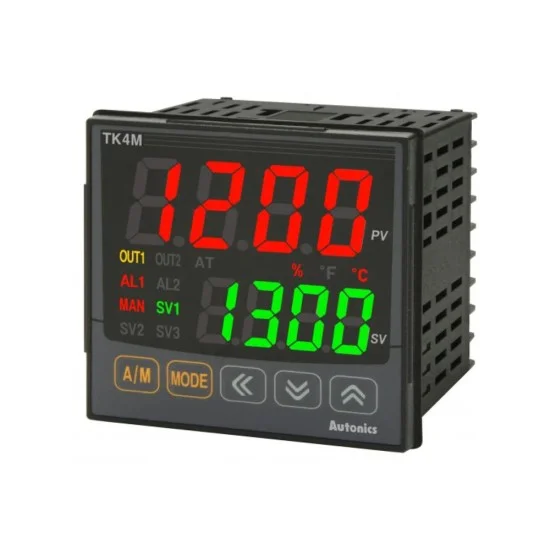

Autonics TK4M-14RR Digital Auto Tuning PID Temperature Controller

The latest Autonics TK4M-14RR Digital Auto Tuning PID Temperature Controller price in Pakistan is Rs. 69,000/- updated on September 8, 2026.

OVERVIEW:

• The TK series high performance PID temperature controllers feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control of any required application.

Features:

• PID Auto Tuning
• Power Supply Voltage: 100 to 240VAC
• Indication Accuracy: ±0.3%
• All Ranges Selectable to °C/ °F
• Memory Retention of Settings
• Super High-Speed Sampling: 50ms
• 4-Digits Double Display for Setting & Indication
• Multi-Input type: Selectable 21 input modes
• One Alarm Output standard in all Controllers
• Output types: Relay, SSR and Current Drive output
• Dramatically increased visibility using wide display part and high luminance LED
• Mounting space saving with compact design – downsized by approx. 38% (60mm) in depth
• Output Mode: ON/OFF & P, PI, PD, PID (Manual or Auto Tuning)
• It is a model that has the speed of display with the sampling cycle time equal to 50ms.
• Effective in controlling temperature both heat and cold. You can choose the control type, both automatic and manual.
• Supports Rs. 485 signal transmission connection
• A variety of inputs can be used, whether RTD, Thermocouple or Analong signal.
• There are outputs to choose from either Relay, SSRP or Current output + SSR drive output.
• There are many control modes, whether ON / OFF, P, PI, PD or PID. This model is considered to be the most effective model for controlling.
• There are many sizes to choose from.
• Autonics TK4H-24RR Digital Auto Tuning PID Temperature Controller

Documents:

Autonics TK4M-14RR Digital Auto Tuning PID Temperature Controller Data Sheet.pdf
