The latest Circutor CVM-C10-Flex Panel-Mounted Power Analyzer price in Pakistan is Rs. 56,000/- updated on June 25, 2026.
OVERVIEW:
- Compact and versatile power analyser, with 4-quadrant measurement (Consumption and Generation), suitable for High, Medium and Low-Voltage installations, since it can process high voltage:current transformation ratios of up to 2000 A. Measures current with flexible Rogowski sensors.
- Capable of adapting to any type of electrical network topology, from single-phase lines, two-phase lines with or without neutral to three-phase lines with or without
- Neutral. The CVM-C10-Flex calculates the sensitivity of the measurement range scale automatically, according to the nominal value of the detected current, up to a full-scale of 2000 A. (Twice the full-scale value of measured current, 1000 A).
- The flexible sensors feature a magnetic lock, which allows the sensors to be sealed. They are robust and can withstand frequent assembly and disassembly procedures, thanks to these magnetic lock.
- Quick installation on distribution panels or switchboards of the unit, thanks to its flexible current sensors. Self-adjustment of the scale sensitivity. Does not require the current primary to be programmed. (1000 A by default, factory setting). Remote correction of errors associated with the incorrect connection of the unit to the electrical installation via remote communication systems (PowerStudio).
Display Features And Interface:
- Backlit keypad (capacitive)
- Analogue display for instantaneous parameters (power, maximum power reached and cos φ or PF)
- Backlit display
- Cost by tariff
- Operating time indicator for preventive maintenance.
The Unit Has The Following Functions:
- Recording of the energy consumption from three different sources:
- network, generator set or photovoltaic energy generation system.
- Selection of tariffs with digital inputs. Perfect for calculating costs in three different work shifts.
Applications:
- Management Systems that require roaming measuring points.
- Distribution panels or switchboards that cannot stop the installation of a measuring unit.
Dcoument:

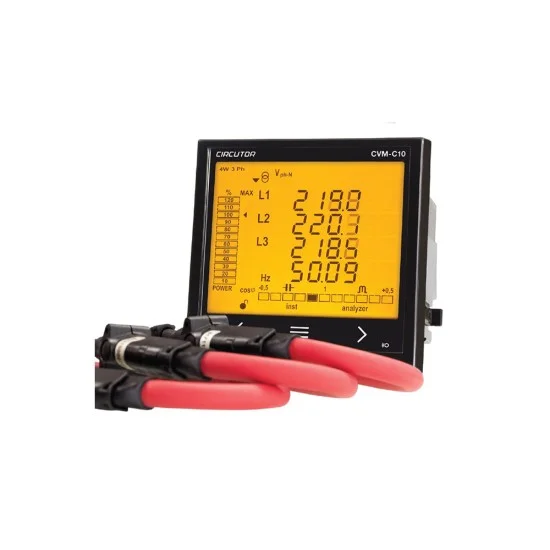

- Circutor CVM-C10-Flex Panel-Mounted Power Analyser With Flexible Rogowski Sensors
Documents:
Circutor CVM-C10-Flex Panel-Mounted Power Analyzer Data Sheet.pdf
Summary
| Altitude | max : 2000 m |
| Safety Standard | CAT III 300 V according to EN 61010 | Double-insulated electric shock protection, Class II |
| Active Energy | Class 0,5S (≥ 0,1 In) acc. to IEC 62053-22 |
| Relative Humidity | 5 … 95% |
HARDWARE FEATURES
| Degree of protection | Front panel: IP 51 (IP 64 with accesory) Rear: IP 21 |
| Enclosure | VO self-extinguishing plastic |
| Input Current | 4 (for Flex-Mag flexible sensors) |
| Protocol | Modbus RTU / BACnet (RS-485) |
TECHNICAL SPECIFICATION
| Power Supply Voltage | 85…265 Vac / 95…300 Vdc | 20…120 Vdc (SDC model) |
| Reactive Energy | Class 1 (≥ 0,1 In) acc. to IEC 62053-24 |
General Specification
| Current | Flex-Mag flexible sensors 1000 A / 100 mV |
| Digital Input | Two : Tariff selection or external alarms NPN, optocoupled |
| Frequency | 50…60 Hz |
| Operating Temperature | -5…+45 ÂşC |
| Power | V, A : 0,5% |
| Relay Output | Two : Max. / Min / NO/NC / Hysteresis / Interlocking 250 Vac, 6 A |
| Sampling | 64 samples/cycle |
| Speed | 9600, 19200 |
| Standard | BS EN 61000-6-4, BS EN-61000-6-2, IEC 61000-6-2, IEC 62053-22 (Class 0,5S), IEC 62053-24 (Class 1), IEC 61000, IEC 61000-4-3, IEC 610004-11, IEC 61000-4-4, IEC 610004-5, Measurement according to MID, UL certification |
| Voltage | 300 V ac Ph-N / 520 V ac Ph-Ph |
| Dimensions | 96.7 x 96.7 x 63.4 mm |
| Digital output | Two : S0 Interface Configurable, up to 1000 impulses 2 NPN Transistors (Only in version 3 TS) (24 Vdc max, 50 mA, 16 imp/s, Max Ton/Toff configurable) |
