The latest Circutor CVM-C10 Programming The Electrical Power Analyzer price in Pakistan is Rs. 125,000/- updated on June 25, 2026.
OVERVIEW:

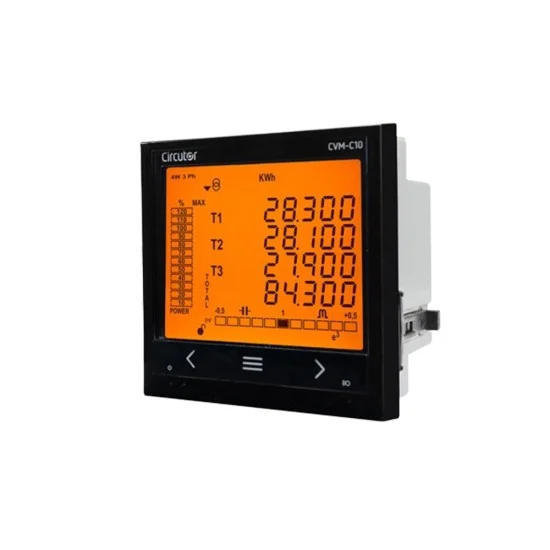

- The CVM-C10 is a panel mounted (96 x 96 mm) power analyzer that records energy values.
- Compact and versatile, with 4-quadrant measurement (consumption and generation).
- Suitable for Medium or Low voltage installations, in both 3 or 4-wire three-phase circuits, two-phase circuits with or without neutral, single-phase circuits or ARON connections.
Display Features And Interface:
- Backlit touch-screen (capacitive)
- Analogue display of instantaneous parameters (power, maximum power reached and cos φ or PF)
- Backlit display
- Alarm LED indicator.
- Tariff cost
- Operating hour indicator for preventive maintenance
Applications:
- Record the energy consumption from three different sources: network, generator set or photovoltaic energy generation system.
- Generation of an impulse signal associated with the cost, kgCO2 emissions or savings, according to the consumption or generation of energy.
- Selection of tariffs with digital inputs. Perfect to calculate costs in three different work shifts.
- Programs alarms on any instantaneous parameter measured or calculated.
- Configurable parameters: Low/High, hysteresis (%), NO/NC, connection/disconnection delay and interlocking.
Dcoument:
- Circutor CVM-C10 Programming The Electrical Power Analyzer
Documents:
Circutor CVM-C10 Programming The Electrical Power Analyzer Data Sheet.pdf
Summary
| Altitude | max : 2000 m |
| Safety Standard | CAT III 300 V according to EN 61010 | Double-insulated electric shock protection, Class II |
| Active Energy | Class 0,5S (≥ 0,1 In) acc. to IEC 62053-22 |
| Relative Humidity | 5 … 95% |
HARDWARE FEATURES
| Degree of protection | Front panel: IP 51 (IP 64 with accesory) Rear: IP 21 |
| Enclosure | VO self-extinguishing plastic |
| Protocol | Modbus RTU / BACnet (RS-485) |
TECHNICAL SPECIFICATION
| Power Supply Voltage | 85…265 Vac / 95…300 Vdc | 20…120 Vdc (SDC model) |
| Reactive Energy | Class 1 (≥ 0,1 In) acc. to IEC 62053-24 |
General Specification
| Current | ITF … /5 A or …/1 A | MC …/250 mA …/333 mV |
| Digital Input | Two : Tariff selection or external alarms NPN, optocoupled |
| Frequency | 50…60 Hz |
| Operating Temperature | -5…+45 ÂşC |
| Power | V, A : 0,5% |
| Relay Output | Two : Max. / Min / NO/NC / Hysteresis / Interlocking 250 Vac, 6 A |
| Sampling | 64 samples/cycle |
| Speed | 9600, 19200 |
| Standard | BS EN 61000-6-4, BS EN-61000-6-2, IEC 61000-6-2, IEC 62053-22 (Class 0,5S), IEC 62053-24 (Class 1), IEC 61000, IEC 61000-4-3, IEC 610004-11, IEC 61000-4-4, IEC 610004-5, Measurement according to MID, UL certification |
| Voltage | 300 V ac Ph-N / 520 V ac Ph-Ph |
| Dimensions | 96.7 x 96.7 x 63.4 mm |
| Digital output | Two : S0 Interface Configurable, up to 1000 impulses 2 NPN Transistors (Only in version 3 TS) (24 Vdc max, 50 mA, 16 imp/s, Max Ton/Toff configurable) |
