The latest CIRCUTOR Energy Analyzer CVM-C10-ITF-485-ICT2 price in Pakistan is Rs. 75,000/- updated on October 21, 2026.
You can buy the Circutor Energy Analyzer CVM-C10-ITF-485-ICT2 online at Roshanex in Pakistan.
Overview

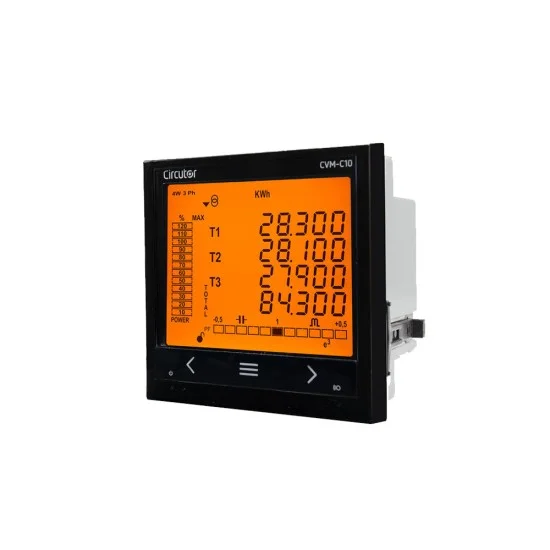

The CVM-C10 is a panel mounted (96 x 96 mm) power analyzer that records energy values. In addition, compact and versatile, with 4-quadrant measurement (consumption and generation). Also suitable for Medium or Low voltage installations, in both 3 or 4-wire three-phase circuits, two-phase circuits with or without neutral, single-phase circuits or ARON connections.
Display features and interface
- Backlit touch-screen (capacitive)
- Analogue display of instantaneous parameters (power,maximum power reached and cos φ or PF)
- Backlit display
- Alarm LED indicator.
- Tariff cost
- Operating hour indicator for preventive maintenance
Applications
- Application for the control and monitoring of all parameters measured by analyzers with communications systems, covering a comprehensive list of parameters in Low and High voltage installations.
- 4 alarms (2 transistor and 2 relay controlled alarms), fully and independently programmable, in accordance with a low or high value, hysteresis, connection/ disconnection delays, normally open or closed standby status and latch.
- Generation of impulses with transistor outputs, fully and independently configurable over any incremental parameter (energy, costs, kgCO2, total meter or tariff hours)
- Transducer that converts analogue signals to any instantaneous parameter that the unit can measure or calculate, with expansion modules with analogue outputs.
- Display of process signals, with a expansion module with analogue inputs. Optional reporting of these signals to SCADA systems through other communications systems
- Control of electrical load operations or alarm signals by means of programming the built-in transistor or relay outputs or other outputs added with expansion modules.
- Autonomous datalogger with WEB server, connected to an EDS unit. Direct monitoring of the historical data stored in the unit with a conventional WEB browser.
Also, you can browse more Circutor products at Roshanex. In addition, our team can help you choose the right model before you order.
GAMING ACCESSORIES
| Speed | 9600, 19200 |
POWER
| Voltage | 300 V ac Ph-N / 520 V ac Ph-Ph |
Summary
| Current | ITF … /5 A or …/1 A MC …/250 mA …/333 mV |
| Relative Humidity | 5 … 95% |
| Brand Name | CIRCUTOR |
HARDWARE FEATURES
| Enclosure | VO self-extinguishing plastic |
| Input | 2 digital inputs Tariff selection or external alarms NPN, optocoupled |
| Protection | Front panel: IP 51 (IP 64 with accesory) Rear: IP 21 |
| Protocol | Modbus RTU / BACnet (RS-485) |
| Standards | BS EN 61000-6-4, BS EN-61000-6-2, IEC 61000-6-2, IEC 62053-22 (Class 0,5S), IEC 62053-24 (Class 1), IEC 61000, IEC 61000-4-3, IEC 610004-11, IEC 61000-4-4, IEC 610004-5, Measurement according to MID, UL certification |
| Dimensions ( W x D x H ) | 96.7 x 96.7 x 63.4 mm |
TECHNICAL SPECIFICATION
| Operating Temperature | -5…+45 ºC |
General Specification
| Frequency | 50…60 Hz |
| Output | 2 digital outputs S0 Interface Configurable, up to 1000 impulses 2 NPN Transistors (Only in version 3 TS) (24 Vdc max, 50 mA, 16 imp/s, Max Ton/Toff configurable) |
