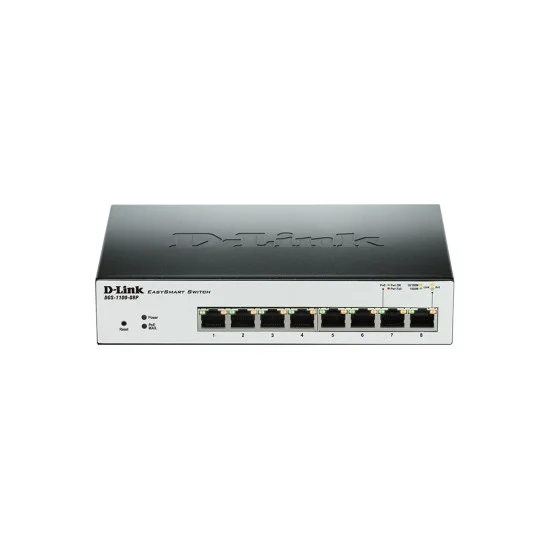

D-Link DGS-1100-08P 8-Port Gigabit PoE Smart Managed Switch
₨ 34,200
The latest D-Link DGS-1100-08P 8-Port Gigabit PoE Smart Managed Switch price in Pakistan is Rs. 34,200/- updated on October 30, 2026.
You can buy the D-Link DGS-1100-08P 8-Port Gigabit PoE Smart Managed Switch online at Roshanex in Pakistan.
OVERVIEW:
- The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management:
- D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting:
- The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
- Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology:
- D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Features:
- 8 x 10/100/1000BASE-T PoE ports
- Supports IEEE 802.3at PoE
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
INPUT
| POWER INPUT | 100 to 240 VAC, 50 to 60 Hz External Universal Power Supply (DGS-1100-05/-08/-08P) |
Summary
| Power Consumption | 78.8 W PoE on; 5.2 W PoE off (DGS-1100-08P) |
| Weight | 1.6 lbs (0.71 kg) (DGS-1100-08P) |
HARDWARE FEATURES
| Capable Ports | Ports 1-8 (DGS-1100-08P) |
| Hardware | Rev A (DGS-1100-05, DGS-1100-08, DGS-1100-08P) |
| Ports | 8 x 10/100/1000 (DGS-1100-08 & DGS-1100-08P) |
| Dimensions ( W x D x H ) | 7.4″ x 4.7″ x 1.5″ (190mm x 120mm x 38mm) (DGS-1100-08P) |
Output
| Transfer Rates | 11.9 Mpps (DGS-1100-08 & DGS-1100-08P) |
TECHNICAL SPECIFICATION
| Operating Humidity | 10% to 95% non-condensing (DGS-1100-05/-08/-08P) 0% to 95% non-condensing (DGS-1100-10MP/-16/-24/-24P/-26MP) |
| Standard Functions | IEEE 802.3, 802.3u, 802.3ab compliant IEEE 802.3x Flow Control IEEE 802.3az EEE compliant 802.3af (DGS-1100-08P/-10MP/-24P/-26MP) Half/Full-duplex operation at 10/100Mbps Full-duplex operation at 1000Mbps Auto-Negotiation for each port Auto MDI/MDIX |
| Storage temperature | 14 to 158 °F (-10 to 70°C) (DGS-1100-05/-08/-08P) |
General Specification
| Operating Temperature | 32 to 104 °F (0 to 40°C) (DGS-1100-05/-08/-08P) |
| Security | D-Link Safeguard (DGS-1100-10MP/-16/-24/-24P/-26MP) Traffic Segmentation Broadcast/Multicast/Unknown Unicast Storm Control DoS Attack Prevention (DGS-1100-10MP/-16/-24/-24P/-26MP) SSL (DGS-1100-10MP/-16/-24/-24P/-26MP) |
| Storage humidity | 5% to 95% non-condensing (DGS-1100-05/-08/-08P) |
Input
| Switching Capacity | 16Gbps (DGS-1100-08 & DGS-1100-08P) |
WIRELESS FEATURES
| Standards | 802.3af (DGS-1100-08P) |
OTHERS
| Certifications | FCC Class A CE Class A VCCI Class ASafety UL/cUL CE LVD |
