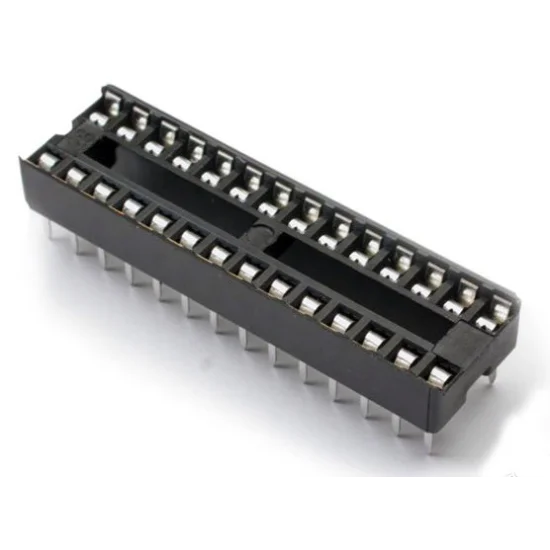

DIP IC Socket 28 Pin

The latest DIP IC Socket 28 Pin price in Pakistan is Rs. 15/- updated on September 10, 2026.

OVERVIEW:

• IC sockets are generally for preventing damage to IC’s from soldering and while testing multiple circuits. These are made from Black Thermoplastic and tin-plated alloy contacts. One end is notched to aid in identification. They can be mounted end to end to suit longer IC’s
• pins: 28 pins
• Overall height above PCB: 4.8mm
• PCB hole required: 0.6mm
• Pitch Width: 7.62mm (0.3in)
• Pin Pitch: 2.54mm (0.1in)
