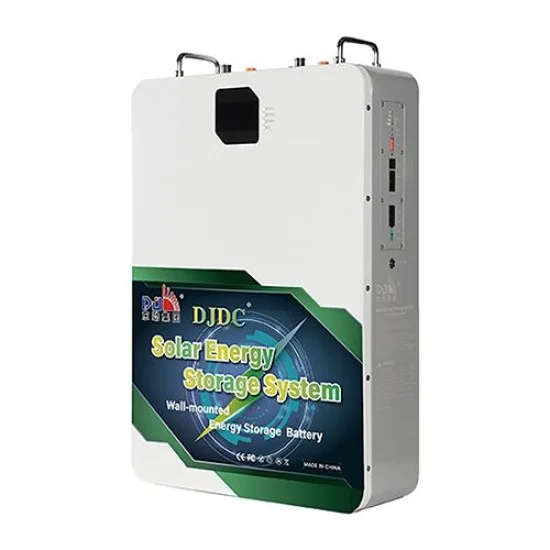

Dongjin 2.4kWh Power Wall Lithium Battery 24V 100AH

The latest Dongjin 2.4kWh Power Wall Lithium Battery 24V 100AH price in Pakistan is Rs. 160,650/- updated on August 30, 2026.

Overview:

The Dongjin 2.4kWh Power Wall Lithium Battery (24V 100Ah) is a wall-mounted LiFePO₄ battery delivering 2,560Wh of energy at 25.6V nominal — the same core cell platform as the WiFi-equipped version of this battery elsewhere in this catalog, just without the wireless connectivity hardware. It shares the identical wall-mounted, space-saving enclosure and is rated for 6,000 cycles at 80% Depth of Discharge.

Circuit protection covers over-charge, over-discharge and over-temperature conditions automatically, and the battery communicates with leading solar hybrid inverter brands over CAN, RS485 or RS232. Fast charging support makes it suitable for solar systems that need to top up quickly during limited daylight hours, and the extreme heat tolerance rating (up to +60°C ambient) is directly relevant for installations in hot Pakistani summers.

At 495 × 315 × 170mm, it shares its physical footprint with the WiFi variant, though without the WiFi hardware it’s marginally lighter — confirm the exact weight against your unit’s nameplate since Dongjin’s published figures for the WiFi version list 27kg.

Key Features:

• 25.6V nominal voltage, 100Ah capacity, 2,560Wh (2.56kWh) energy
• LiFePO₄ (Lithium Iron Phosphate) chemistry
• Cycle life of 6,000 cycles at 80% Depth of Discharge
• Wall-mounted, space-saving design
• Circuit protection: over-charge, over-discharge, over-temperature
• Smart BMS communication with leading solar hybrid inverters
• Communication interface: CAN / RS485 / RS232
• Fast charging and discharging, suitable for solar systems
• Extreme heat tolerance up to +60°C ambient
• IP32 protection level
• Compact footprint at 495 × 315 × 170mm
