The latest Fluke 1735 Three-Phase Power Quality Logger price in Pakistan is Rs. 825,000/- updated on August 30, 2026.
OVERVIEW:

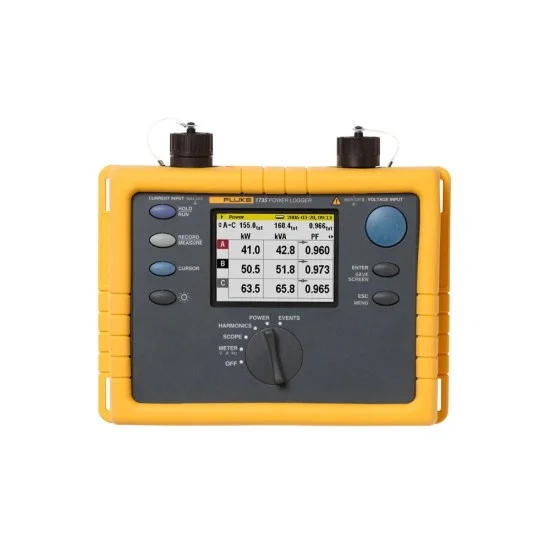

- Fluke’s 1735 Three-Phase power data logger is Fluke’s most versatile multi-purpose power quality and energy analyzer on the market for the price and is the ideal power meter for conducting energy studies and basic power quality logging. Set the Power Logger up in seconds with the included flexible current probes and color display. The power quality meter measures most electrical power parameters, harmonics, and captures voltage events.
Features:
- Record power and associated parameters for up to 45 days
- Monitor maximum power demand over user-defined averaging periods
- Prove the benefit of efficiency improvements with energy consumption tests
- Measure harmonic distortion caused by electronic loads
- Improve reliability by capturing voltage dips and swells from load switching
- Easily confirm instrument setup with color display of waveforms and trends
- Measure all three phases and neutral with included 4 flexible current probes
- View graphs and generate reports with included Power Log software
Documents:
Summary
| Sample rate | 10.24 kHz |
TECHNICAL SPECIFICATION
| Storage temperature | -20°C to +60°C |
General Specification
| Emission rate | IEC/EN 61326-1:1997 class B |
| Interface | RS-232 SUB-D socket; 115.2 k Baud, 8 data bits, no parity, 1 stop bit, firmware updates are possible with the RS- 232 interface (9-pole extension cable) |
| Memory | 4 MB Flash memory, 3.5 MB for measuring data |
| Operating Temperature | 0°C to +40°C |
| Quality | Developed, designed and manufactured according to DIN ISO 9001 |
| Weight | 1.7 kg |
| Dimensions | 240 x 180 x 110 mm |
| Power Supply | NiMH battery-pack, with ac adapter (15 V to 20 V / 0.8 A) |
