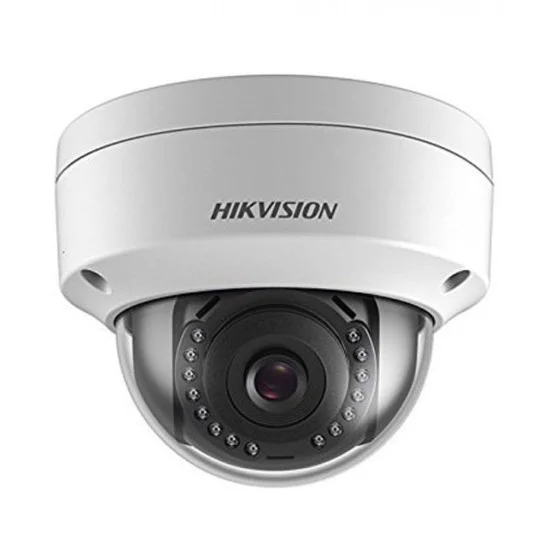

Hikvision DS-2CD1131-I 3MP Network Dome Camera
₨7,910.00
The latest Hikvision DS-2CD1131-I 3MP Network Dome Camera price in Pakistan is Rs. 7,910/- updated on September 9, 2026.
OVERVIEW:
- The DS-2CD1131-I camera is dedicated for IP CCTV systems. The ceiling camera has been equipped with 3 MP 1/3′ CMOS sensor providing good video coverage even in low-light conditions. Along with IR illuminator with range up to 30 m, the camera can also operate in complete darkness. The built-in 2.8 mm lens has 105° viewing angle. The IP67-rated housing of the camera protects the electronics against adverse weather conditions. The camera can be powered conventionally from a 12 VDC source or with the use of PoE option (802.3af).
Features:
- 1/3′ progressive scan CMOS
- Up to 3.0 megapixel
- 2.8 mm/4 mm/6 mm fixed focal lens
- Up to 30 m IR range
- Dual stream
- Digital WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- PoE (Power over Ethernet)
- IP67, Ik10
- Mobile monitoring via Hik-Connect or iVMS-4500
Documents:
Hikvision DS-2CD1131-I 3MP Network Dome Camera Data Sheet.pdf
Camera Specification
| BLC | There are, customizable zones |
| Day&Night | ICR filter |
| DNR | 3D DNR |
| Minimum Illumination | 0.01 Lux / F1.2; 0 Suite with IR |
| Protection Level | IP67, IK10 |
| Shutter Time | 1/3 s ~ 1 / 100,000 s |
Display Specification
| Lens | f = 2.8 mm / F2.0, viewing angle: 105.8 ° |
Storage Specification
| Network Storage | NAS (NFS, SMB / CIFS) |
Summary
| Resolution | 2304×1296 |
| Power Consumption | 5.5 W |
| Weight | 500g |
| Range | DWDR |
HARDWARE FEATURES
| Protocol | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Power Supply | DC 12V ± 10%, PoE (802.3af) |
Interface
| Network Interface | 1-RJ45 10M / 100M |
TECHNICAL SPECIFICATION
| Working temperature | -30°C ~ 60°C |
General Specification
| Frame Rate | 2304×1296 – 20 frames / sec .; 1080p / 960p / 720p – 25 frames / second. |
| Image Sensor | 1/3 ‘Progressive Scan CMOS |
| IR Range | up to 30 meters |
| Dimension | f 111×82 mm |
Input
| Video Compression | Main stream: H.264 + / H.264; Extras. stream: H.264 / MJPEG |
