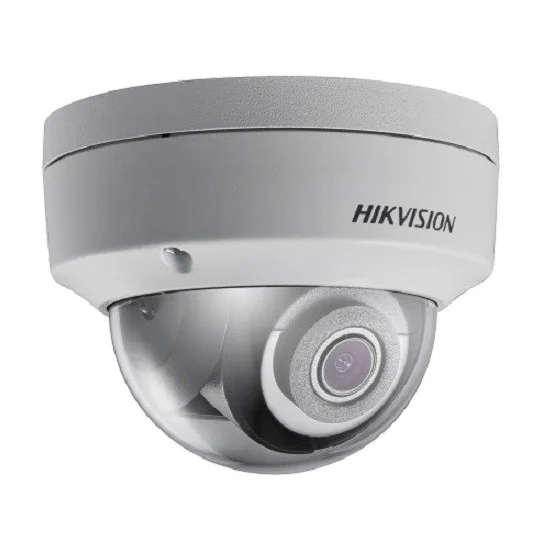

Hikvision DS-2CD2143G0-I 4MP IR Fixed Dome Camera
₨19,280.00
The latest Hikvision DS-2CD2143G0-I 4MP IR Fixed Dome Camera price in Pakistan is Rs. 19,280/- updated on September 9, 2026.
OVERVIEW:
- The Hikvision DS-2CD2143G0-I Outdoor IR Fixed Dome Camera provides high definition network output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage.
- The camera has an EXIR 2.0 range of up to 100 feet (30 meters).
- The 2.8 mm and 4 mm lens options are optimized for viewing angles that fit any situation
Features:
- 1/3′ (4 MP) Progressive Scan CMOS
- Up to 2688 x 1520 Resolution
- 2.8 mm and 4 mm Fixed Lens Options
- EXIR 2.0 Range Up to 100 ft (30 m)
- H.265+/H.265/H.264+/H.264
- 120 dB WDR
- IP67, IK10 Protection
- Durable Metal Housing
- 12 VDC ±25% (PoE 802.3af), maximum 7.5 W
Documents:
Hikvision DS-2CD2143G0-I 4MP IR Fixed Dome Camera Data Sheet.pdf
Camera Specification
| BLC | Yes, zone configurable |
| Day&Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Protection Level | IP67 |
| Shutter Time | 1/3 s to 1/100,000 s |
| WDR | 120 dB |
Computers Specs
| Behavior Analysis | Line crossing detection, intrusion detection |
| Recognition | Face Detection |
Display Specification
| Lens Mount | M12 |
| Lens | 2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° 8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45° |
Storage Specification
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Summary
| communication interface | 1 RJ45 10M / 100M Ethernet interface |
| Resolution | 2688 × 1520 |
| Weight | Camera: Approx. 610 g (1.3 lb.) With Package: Approx. 820 g (1.8 lb.) |
| Operating Conditions | -30°C ~ 60°C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
HARDWARE FEATURES
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| Protection | IK08 Protection Level |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Power Consumption | Max. 5W |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
TECHNICAL SPECIFICATION
| General | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
General Specification
| Frame Rate | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
| Image Sensor | 1/3′ Progressive Scan CMOS |
| Dimensions | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Adjustable detection range | Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0-355° |
| Alarm | with -S model:1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
Input
| Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
WIRELESS FEATURES
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
RADIO FREQUENCY
| Channel Bandwidth | 20/40MHz Support |
