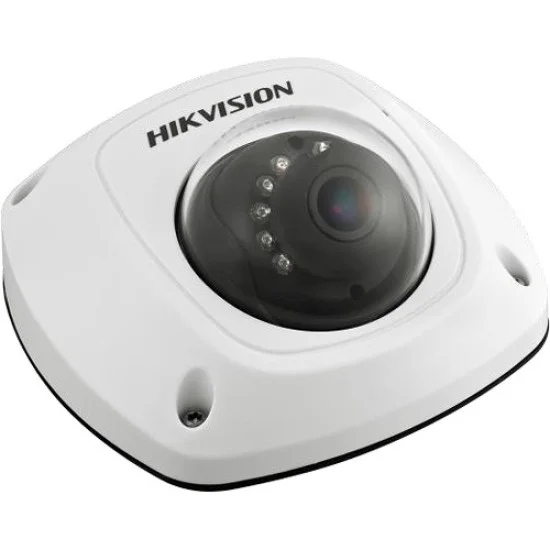

Hikvision DS-2CD2542FWD-I-4 4MP Mini Dome Network Camera
₨17,280.00
The latest Hikvision DS-2CD2542FWD-I-4 4MP Mini Dome Network Camera price in Pakistan is Rs. 17,280/- updated on September 9, 2026.
OVERVIEW:
- 2688 x 1520 Resolution at 20 fps
- IR LEDs for Up to 33′ of Night Vision
- 4mm Fixed Lens with f/2.0 Aperture
- Mic & Audio Output for 2-Way Audio
- microSD Slot Supports Up to 128GB
- H.264 and MJPEG Dual Streaming
- Integrated Wi-Fi Connection
- RJ45 Ethernet with PoE Technology
Documents:
Hikvision DS-2CD2542FWD-I-4 4MP Mini Dome Network Camera Data Sheet.pdf
Camera Specification
| BLC | Yes, zone configurable |
| Day&Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| Minimum Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Protection Level | IP66 |
| Shutter Time | 1/3 s to 1/100,000 s |
| WDR | 120 dB |
Display Specification
| Lens Mount | M12 |
| Lens | 4mm @ f/2.0 |
Storage Specification
| Network Storage | NAS (Support NFS, SMB / CIFS), ANR |
Summary
| communication interface | 1 RJ45 10M / 100M Ethernet interface |
| Resolution | 2688 × 1520 |
| Weight | 600 g (1.32 lbs) |
| Operating Conditions | -30°C ~ 60°C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
HARDWARE FEATURES
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Power Consumption | Max. 5W |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
TECHNICAL SPECIFICATION
| General | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
General Specification
| Frame Rate | 50 Hz: 20 fps (2688 x 1520), 25 fps (1920 x 1080), 25 fps (1280 x 720) 60 Hz: 20 fps (2688 x 1520), 30 fps (1920 x 1080), 30 fps (1280 x 720) |
| Image Sensor | 1/3′ Progressive Scan CMOS |
| IR Range | 10 meters |
| Dimensions | 3.9 x 4 x 2′ (99.3 x 97 x 53 mm) |
| Adjustable detection range | Pan: -30° to 30° Tilt: 0° to 75° Rotation: 0° to 360° |
Input
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 |
| Video Compression | H.264 Main Profile / MJPEG |
WIRELESS FEATURES
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
RADIO FREQUENCY
| Channel Bandwidth | 20/40MHz Support |
