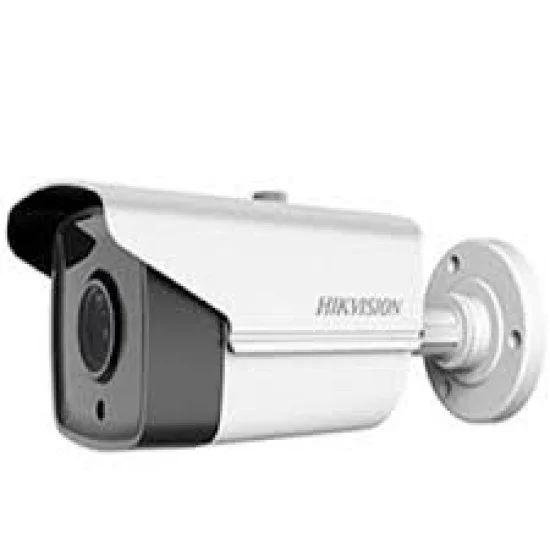

Hikvision DS-2CE16H1T-IT3 5 MP HD Bullet Camera
₨ 6,814
The latest Hikvision DS-2CE16H1T-IT3 5 MP HD Bullet Camera price in Pakistan is Rs. 6,814/- updated on November 1, 2026.
OVERVIEW:
- Hikvision DS-2CE16H1T-IT3 EXIR Bullet Cameras are a versatile solution for all of your security needs. They feature a wide range viewing angle that captures images with a resolution of 5 MP at up to 20 fps. The Bullet Camera supports the Hikvision Up-the-Coax protocol, DWDR, and is equipped with an IR lamp with a range of up to 65 ft (20 m), which facilitates nighttime recording.
Features:
- 1/3′ (5 MP) High-Performance CMOS
- HD Analog Output, up to 5 MP Resolution
- 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm Fixed Focal Lens
- True Day/Night
- OSD Menu, DNR, Smart IR
- DWDR
- EXIR Technology, up to 65 ft (20 m) IR Distance
- IP67 Protection
- Up-the-Coax (HIKVISION-C)
Documents:
Hikvision DS-2CE16H1T-IT3 5 MP HD Bullet Camera Data Sheet.pdf
Camera Specification
| AGC | Support |
| Angle Of View | 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm) |
| BLC | Support |
| Day&Night | ICR |
| Effective Pixels | 2592 (H) × 1944 (V) |
| Minimum Illumination | Color: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR |
| Protection Level | IP67 |
| S/N Ratio | More than 62 dB |
| Shutter Time | 1/25(1/30)s to 1/50,000s |
| Video Frame Rate | 2592 × 1944 @ 20fps |
| WDR | 120 dB |
| White Balance | Auto/MWB |
Computers Specs
| Power Supply Type | 12 VDC±15% |
Display Specification
| Lens Mount | φ12 |
| Lens | 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens Horizontal Field of View 86.5° (2.8 mm), 70.1° (3.6 mm), 46° (6 mm), 32.5° (8 mm), 20.9° (12 mm) |
Summary
| Function | Brightness, sharpness, digital noise reduction, mirror, bad pixel correction, smart IR |
| Sensor | 5MP CMOS image sensor |
HARDWARE FEATURES
| Protocol | HIKVISION-C(Coaxitron) |
| Signal System | PAL/NTSC |
| Video output port | 1 Analog HD output |
| Power Consumption | Max. 5W |
Output
| D/N Mode | Color/BW/SMART |
Physical & Electrical
| Weight | 680 g |
TECHNICAL SPECIFICATION
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
General Specification
| IR Range | Up to 80m |
| Operating Condition | -40°C – 60°C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) |
| Dimension | 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″) |
