Digital Video Recorder (DVR), HIKVISION, Networking,Security & Surveiliance, Security & Surveillance

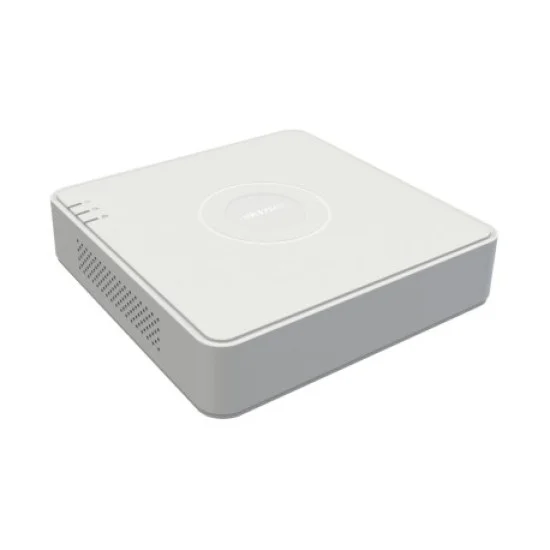

Hikvision DS-7116HQHI-K1 16CH 1U Mini 1080p 1 HDD 15fps DVR
₨ 30,000
The latest Hikvision DS-7116HQHI-K1 16CH 1U Mini 1080p 1 HDD 15fps DVR price in Pakistan is Rs. 30,000/- updated on October 31, 2026.
You can buy the Hikvision DS-7116HQHI-K1 16CH 1U Mini 1080p 1 HDD 15fps online at Roshanex in Pakistan.
FEATURES:
- 8 channels and 1 HDD mini size DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 24 network cameras can be connected
Summary
| Encoding resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
HARDWARE FEATURES
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
Interface
| Network Interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB Interface | Real panel: 2 × USB 2.0 |
Output
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
TECHNICAL SPECIFICATION
| Working temperature | -10°C to +55°C |
Type
| Stream Type | Video, Video & Audio |
General Specification
| Capacity | Up to 6 TB capacity for each disk |
| Dual Stream | Support |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Type | 16CH 1U Mini 1080p 1 HDD 15fps DVR |
| Weight | ≤ 1 kg |
| Power Supply | 12 VDC, 1.9 A |
| Dimension | 285 × 210 × 45 mm |
Input
| Audio Compression | G.711u |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
