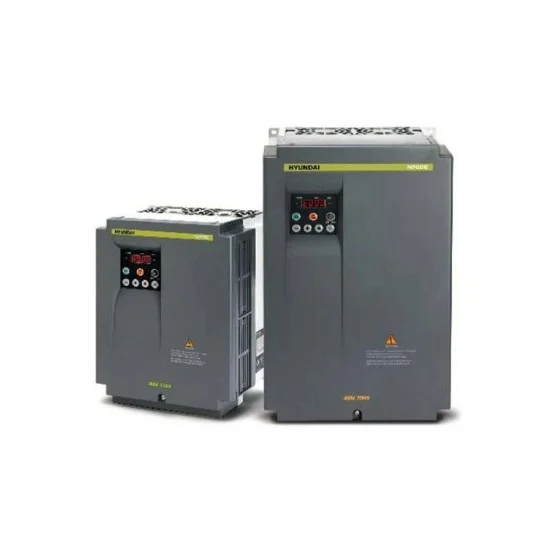

The latest Hyundai N700E-022HF Inverter 2.2KW / 3HP price in Pakistan is Rs. 285,000/- updated on October 19, 2026.
You can buy the Hyundai N700E-022HF Inverter 2.2kW / 3HP online at Roshanex in Pakistan.
OVERVIEW:
- The HYUNDAI N700E Series High Performance Drives offer powerful control solutions with exceptional speed control and torque response which provides superior vector performance.The N700E’s compact size and sensorless vector control technology provides perfectly optimized performance for industrial and commercial applications.
- Certificates of international standards (UL/cUL, CE) for the N700E series make it perfect for global applications. Compatible with the most common loads such as: fans, blowers, compressors, pumps, mixers, agitators, feeders, centrifuges, cranes, hoists, presses, sa14, extruders, and textile spinning machines.
Features:
- Sensorless Vector Control
- 0.01 – 400hz
- 150% overload for one minute, CT application
- 120% overload for one minute, VT application
- 3000 second accel/decel
- DC braking
- Auto-tuning
- BDR brake function
- AVR function
- Six level multi-speed
- Adjustable carrier frequencies
- PID control
- Frequency jump
- Analog gain bias
- Jog run
- Electronic thermal overload
- Auto-torque boost, trip history monitor and software lock
- 50°C ambient
- Speed search function
- Intelligent input function
- Rs. 485 – Modbus communications
Documents:
Summary
| Ambient Humidity | Below 90% RH |
| Ambient Temperature | -10 to 50°C (unit can be designed to function outside this range) |
HARDWARE FEATURES
| Rated power | 3 HP / 2.2 kW |
TECHNICAL SPECIFICATION
| Rated Input Voltage | Three Phase 380 ~480 VAC ± 10% 50/60 Hz ± 5% |
| Rated Output Current | 7.2 A |
| Rated Output Voltage | Three Phase 380 ~480 VAC (corresponding to input voltage) |
| Storage temperature | -20 to 60°C |
General Specification
| Location | Under 1000m above sea level, indoors, away from corrosive gasses, dust, etc |
| Vibration | 5.9N/s² (0.6G) 10 to 55Hz |
