The latest ITEL 4kW Pro IP54 Hybrid Solar Inverter price in Pakistan is Rs. 120,000/- updated on August 30, 2026.
Product Details:

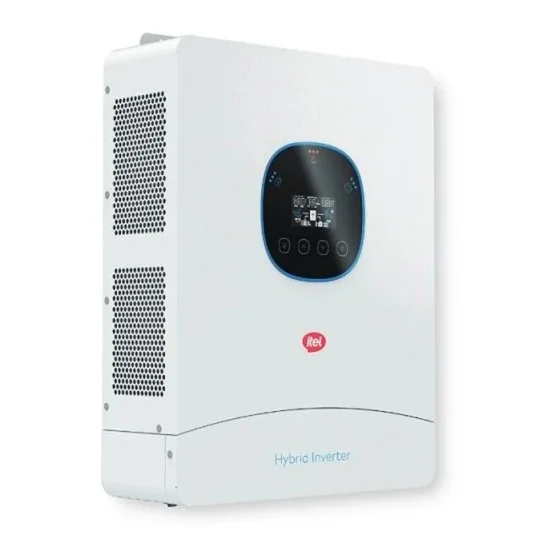

The iTel IPV-4K24U Pro is a 4kW, 24V hybrid solar inverter engineered for moderate to heavy household loads, combining dual independent MPPT channels with a fast 10ms UPS-grade switchover to keep power flowing seamlessly through grid outages. The dual MPPT design lets it draw maximum power from panels mounted at different angles or affected by partial shading — a common real-world scenario in rooftop installations — while delivering 4,000W of continuous output backed by an 8,000W surge rating for starting motor-driven appliances. With up to 98% efficiency in battery mode, IP54 protection against dust and splashes, and WiFi, RS485, and RS232 connectivity for remote monitoring, it is built as a complete, self-contained hybrid power solution for homes typically running Rs. 8,000–15,000 in monthly electricity bills, compatible with both 48V lithium-ion and lead-acid battery banks.
Features:
- Robust Power Output: 4,000W continuous output with an 8,000W surge rating (@5s) to comfortably start motor-driven appliances and mixed household loads.
- Dual Independent MPPT: Two independent MPPT channels optimize energy harvest from panels at different tilt angles or partial shading conditions.
- High Efficiency: MPPT tracking efficiency of ≥99.9% and up to 98% efficiency in battery mode minimize energy losses across the system.
- Flexible Battery Support: Compatible with 48V lithium-ion, lead-acid, and user-defined battery types for easy integration into existing setups.
- Fast Backup Switchover: 10ms UPS-mode switchover (20ms for general appliances) keeps sensitive electronics running without a noticeable interruption.
- Weatherproof Build: IP54 ingress protection against dust and water splashes suits both indoor and semi-outdoor installation.
- Remote Monitoring: WiFi, RS485, and RS232 connectivity enable remote monitoring and integration with smart home and solar monitoring apps.
- Scalable & Backed: Supports parallel operation with up to 12 units for larger systems, and comes with strong overload protection (up to 200% capacity).
Documents:
ITEL 4kW Pro Hybrid Solar Inverter Data Sheet.pdf
User Manual:
GENERAL
| Model | IPV-4K24U Pro |
| Ingress Protection | IP54 |
| Cooling Method | Intelligent Fan Cooling |
PV INPUT
| Max PV Input Power | 6,000W |
| Max PV Input Voltage | 500V |
| Start-Up Voltage | 80V |
| MPPT Voltage Range | 85V – 450V |
| MPP Trackers | 1 |
| Max Input Current | 15A |
| MPPT Tracking Efficiency | ≥99.9% |
AC INPUT
| Nominal Voltage | 230VAC |
| Input Voltage Range | 90 – 280VAC |
| Max Bypass AC Current | 28A |
| Nominal Frequency | 50Hz / 60Hz |
AC OUTPUT
| Nominal AC Output Power | 4,000W / 4,000VA |
| Nominal Output Voltage | 220 / 230 / 240V |
| Surge Power | 8,000W @5s |
| Overload Capacity | 105%–150% @10s, 150%–200% @5s |
| Switch Time | 10ms (UPS) / 20ms (Appliances) |
| THD | <3% |
BATTERY
| Battery Type | Lead-acid / Lithium-ion / User Defined |
| Rated Voltage | 24V |
| Battery Voltage Range | 20V – 30V |
| Max MPPT Charging Current | 120A |
| Max Mains/Generator Charging Current | 100A |
| Max Discharging Current | 160A |
| Battery Mode Conversion Efficiency | ≥93% |
GENERAL SPECIFICATION
| Communication | WiFi / RS485 / RS232 / Dry Contact |
| Diesel Generator Support | Yes |
| Smart Load Support | Yes |
| Number of Parallel | Up to 12 |
| Noise | <60dB |
| Authentication | IEC62109-1, IEC62109-2, IEC61683 |
| Operating Temperature Range | -10°C ~ +55°C, >45°C derating |
| Max Operating Altitude | 4000m, >2000m derating |
| Dimensions | 120 × 347 × 445 mm |
| Net Weight | 9.2 kg |
