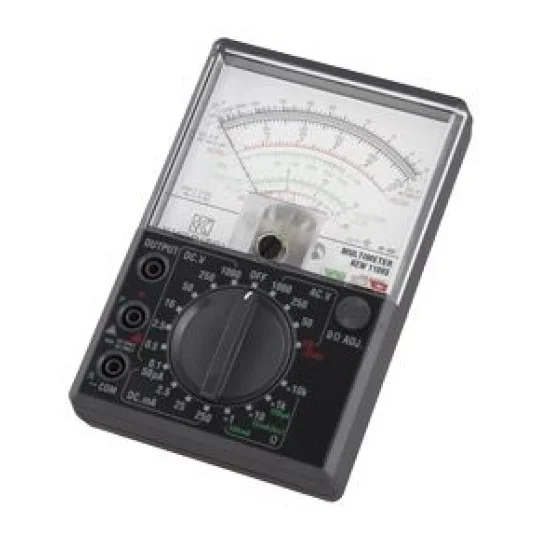

The latest KEW 1109 Analog Multimeter Tester price in Pakistan is Rs. 10,000/- updated on June 20, 2026.
OVERVIEW:
- Mirrored scale for easy and accurate reading.
- Fuse and diode protected circuit (except 15A AC range).
- Output terminal to cut off DC component when measuring AC voltage.
- Safety designed input terminals and test leads.
POWER
| DC Voltage | 50µA / 2.5 / 25 / 250mA ± 3% of full scale for all ranges |
Summary
| AC Voltage | 10/50/250 / 1000V ± 3% of full scale for all ranges (9kOhm / V) |
| Resistance | 2 / 20kOhm / 2 / 20MOhm ± 3% of full scale for all ranges |
General Specification
| Alternating Current | 15A ± 3% of full scale |
| Constant Pressure | 0.1 / 0.5 / 2.5 / 10/50/250/1000 V ± 3% of full scale for all ranges (20kOhm / V) |
| weight | 330 g (not more than) |
| Dimensions | 150x100x47 mm |
| Power Supply | R6P (AA) (1.5 B) x2,6F22 (9 B) x 1 |
