Earth & Insulation Tester, Industrial Meter, Kyoritsu

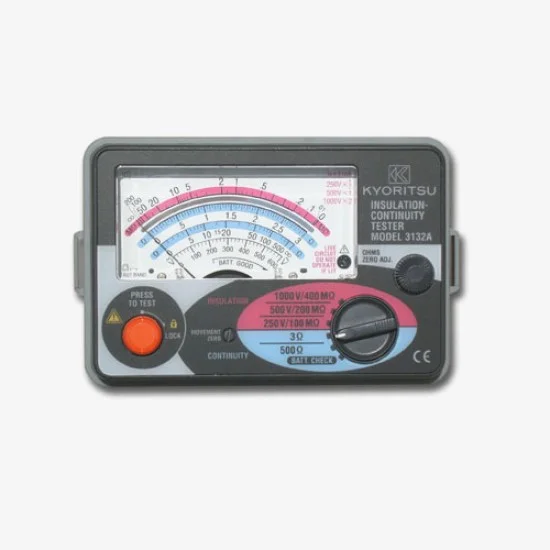

KYORITSU 3132A Analogue Insulation / Continuity Tester
₨40,000.00
The latest KYORITSU 3132A Analogue Insulation / Continuity Tester price in Pakistan is Rs. 40,000/- updated on August 29, 2026.
FEATURES:
- Dust and drip-proof construction. (designed to IEC 60529 IP54)
- Designed to meet IEC 61010-1 and IEC 61557 safety standard.
- 1mA rated test current at the minimum resistance.
- 200mA measuring current on continuity testing.
- Automatic discharge of circuit capacitance.
- (Any charge stored in the circuit under test will be automatically discharged after testing.)
- Live circuit warning buzzer and neon lamp.
- Small and lightweight. Shock resistant new case material.
- AC voltmeter with linear, easy-to-read scale.
- Operates on AA, R6 × 6 dry batteries.
Documents:
KYORITSU 3132A Analogue Insulation / Continuity Tester Data Sheet.pdf
Summary
| EMC Standard | IEC 61326-1 |
| Included Accessories | 7122B (Test leads) Pouch for test leads 8923 (F500mA/600V fuse) × 2 R6 (AA) × 6 9121 (Shoulder Strap) Instruction Manual |
| Nominal current | (Insulation Resistance) 1mA DC min. |
| Output short circuit current | (Insulation Resistance) 1 – 2mA DC |
| Safety Standard | IEC 61010-1 CAT III 600V Pollution Degree 2 IEC 61010-2-031 IEC 61557-1/2/4 |
| AC Voltage | (AC Voltage) 0-600V AC |
| Accuracy | (Continuity Test) ±1.5% of scale length (Insulation Resistance) 0.1 – 10MΩ/0.2 – 20MΩ/0.4 – 40MΩ (Accuracy Guaranteed Ranges) ±5% of indicated value (AC Voltage) ±5% of scale length |
| Measuring range | (Insulation Resistance) 100MΩ/200MΩ/400MΩ (1MΩ) (2MΩ) (4MΩ) (Mid-scale value) (Continuity Test) 3Ω/500Ω (1.5Ω) / (20Ω) |
| Weight | 560g approx. |
| Measuring Current | (Continuity Test) 210mA DC min. |
| Test Voltage | (Insulation Resistance) 250V/500V/1000V |
| Output Voltage on Open Circuit | (Continuity Test) 4.1V DC approx. (Insulation Resistance) Rated test voltage+20%, -0% |
| Power Source | R6 (AA) (1.5V) × 6 |
TECHNICAL SPECIFICATION
| IP Rating | IEC 60529-IP54 |
General Specification
| Dimensions | 106(L) × 160(W) × 72(D)mm |
