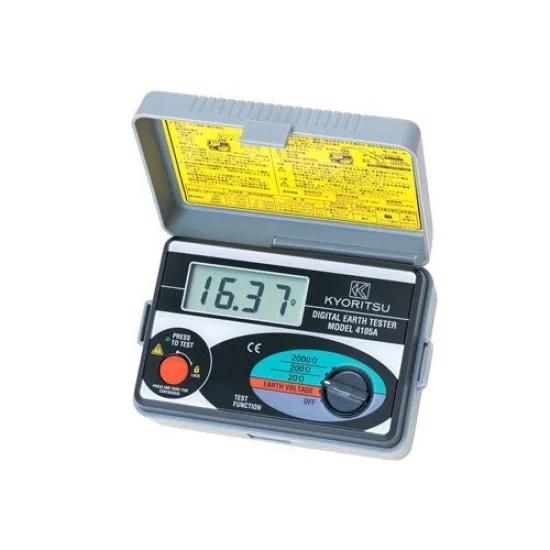

The latest KYORITSU 4105A Earth Tester price in Pakistan is Rs. 58,000/- updated on June 20, 2026.
FEATURES:
- Dust and drip-proof. (designed to IEC 60529 IP54)
- In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.
- (unit can be hung from the neck for simplified measurement)
- Designed to meet IEC 61010-1 safety standard.
- Capable of measuring earth voltage.
- Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
- Small and lightweight. Shock resistant new case material.
- 2 mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
Documents:
Summary
| Applicable standards | IEC 60529 IP54 |
| Included Accessories | 7095A (Earth resistance test leads) Ă— 1set (red-20m, yellow-10m, green-5m) 8032 (Auxiliary earth spikes) Ă— 1set 7127A (Simplified measurement probe) Ă— 1set R6 (AA) Ă— 6 9121 (Shoulder strap) Instruction Manual Carrying case : 9084(Carrying case[Soft]:4105A only) : 9165(Carrying case[Hard]:4105A-H only) |
| Optional Accessories | 7100A (Precision measurement cord set) |
| Overload protection | Earth Resistance: 280V AC for 10 seconds across 2 of the 3 terminals Earth Voltage: 300V AC for 1 minute |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557 |
| Accuracy | Earth Resistance: ±2%rdg±0.1Ω (20Ωrange) ±2%rdg±3dgt (200Ω/2000Ωrange) Earth Voltage: ±1%rdg±4dgt |
| Measuring range | Earth Resistance: 0 – 20Ω/0 – 200Ω/0 – 2000Ω Earth Voltage [50,60Hz]: 0 – 200V AC |
| Weight | 550g approx. |
| Power Source | R6 (AA) (1.5V) Ă— 6 |
General Specification
| Dimensions | 105(L) Ă— 158(W) Ă— 70(D)mm |
