AC + DC Clamp Meters, Industrial Meter, Kyoritsu

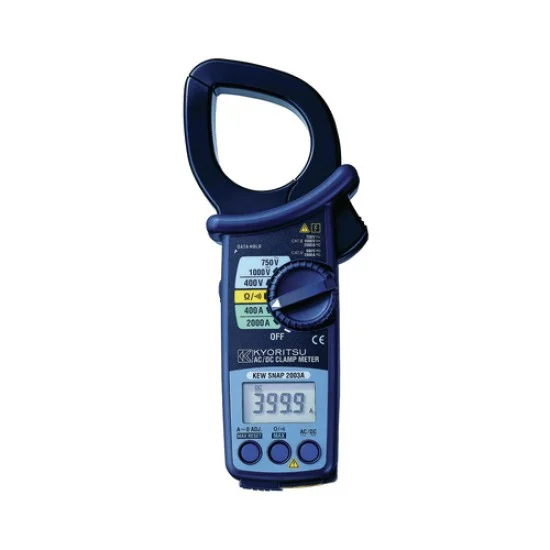

Kyoritsu Kew 2003A AC/DC Digital Clamp Meter
₨ 56,000
The latest Kyoritsu Kew 2003A AC/DC Digital Clamp Meter price in Pakistan is Rs. 56,000/- updated on October 22, 2026.
You can buy the Kyoritsu Kew 2003A AC/DC Digital Clamp Meter online at Roshanex in Pakistan.
FEATURES:
- Equipped to measure both AC and DC current with transformer jaws of large diameter.
- Can measure AC and DC currents up to 2000A.
- Output terminal for connection to recorders.
Documents:
Summary
| Conductor size | Ø55mm max. |
| Continuity buzzer | buzzer sounds below 50±35Ω |
| DC Voltage | 400/1000V ±1%rdg±2dgt |
| Included Accessories | 7107A (Test leads) 8201 (Output Plug) 9094 (Carrying Case) R6 (AA) × 2 Instruction Manual |
| Optional Accessories | 7256 (Output cord) |
| Safety Standard | IEC 61010-1 CAT IV 600V , CAT III 1000V IEC 61010-031 IEC 61010-2-032 |
| AC Voltage | 400/750V ±1.5%rdg±2dgt [50/60Hz] ±1.5%rdg±4dgt [40Hz – 1kHz] |
| DC Current | 400/2000A ±1.5%rdg±2dgt |
| AC Current | 400A/2000A (0 – 1000A) ±1.5%rdg±2dgt [50/60Hz] ±3%rdg±4dgt [40 – 500Hz] ±5%rdg±4dgt [500Hz – 1kHz] 2000A (1001 – 2000A) ±3%rdg±2dgt [50/60Hz] |
| Frequency | 40Hz – 1kHz |
| Weight | 530g approx. |
| Power Source | R6 (AA) (1.5V) × 2 |
| Ohms | 400/2000A ±1.5%rdg±2dgt |
HARDWARE FEATURES
| Output | Recorder : DC400mV against AC/DC400A DC200mV against AC/DC2000A |
General Specification
| Dimensions | 250(L) × 105(W) × 49(D)mm |
