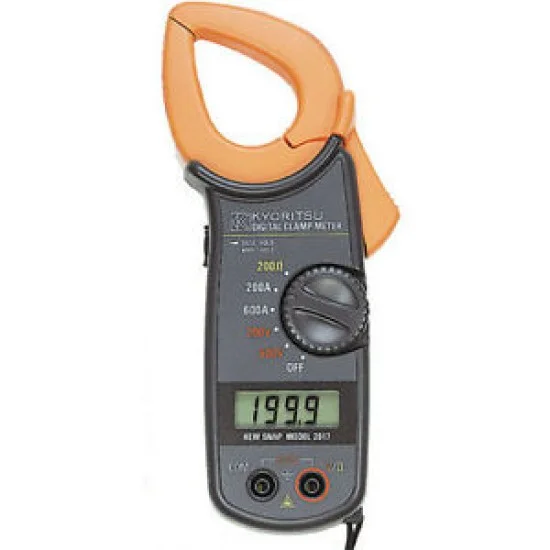

The latest Kyoritsu KEW 2017 AC Digital Clamp Meter price in Pakistan is Rs. 44,000/- updated on June 20, 2026.
OVERVIEW:
- Teardrop-shaped jaws for ease of use in tight places and crowded cable areas.
- Designed to meet internationally proven safety standards such as IEC 61010-1, UL3111 and VDE0411.
- Three functions in one unit; AC voltage and resistance.
- Resistance range provides audible continuity test.
- Frequency response from 40Hz to 1kHz on AC current and voltage ranges.
Documents:
Summary
| Accessories | 7066A (Test leads) – 9079 (Carrying case) – 6F22 × 1 – Instruction Manual |
| Conductor size | Ø33mm max. |
| Continuity buzzer | Buzzer sounds below 30±20Ω |
HARDWARE FEATURES
| Standard Type | IEC 61010-1 CAT III 600V Pollution Degree 2 – IEC 61010-2-032 |
TECHNICAL SPECIFICATION
| Withstand voltage | 5550V AC for 1 minute |
General Specification
| AC current Accuracy | 200A: ±1.5%rdg ±4dgt at 50 to 60Hz 600A: ±1%rdg ±3dgt at 50 to 60Hz ±2%rdg ±5dgt at 45Hz to 1kHz |
| AC Current range | 200/600A |
| AC voltage Accuracy | ±1%rdg ±2dgt at 50 to 60Hz ±1.5%rdg ±4dgt at 45Hz to 1kHz |
| AC voltage range | 200/600V |
| Power | 6F22 (9V) × 1 |
| Resistance | 200Ω |
| weight | 400g approx. |
| Dimensions | 208(L) × 91(W) × 40(D)mm |
