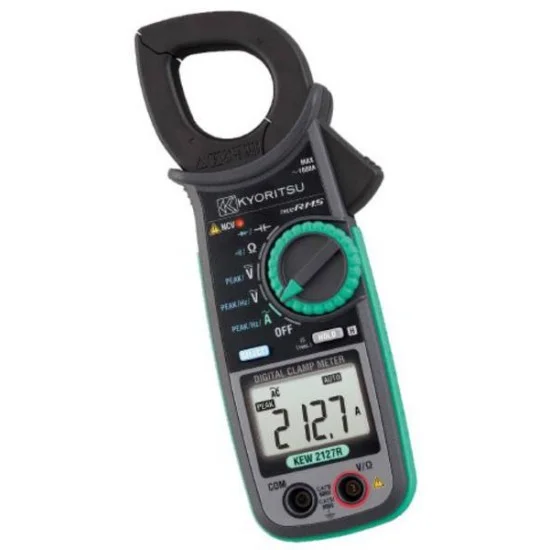

The latest Kyoritsu Kew 2127R Digital Clamp Meter price in Pakistan is Rs. 26,000/- updated on June 20, 2026.
OVERVIEW:
- 1000A AC Clamp Meter, AC60/600/1000A Auto Range
- True-RMS
- Peak Hold for inrush current
- 6000 counts display with Backlight
- ø33mm Tear Drop shaped jaw easy to use in tight places
- Double moulding gives a comfortable feeling
- Safety standard IEC 61010-1, CAT ??? 300V/ CAT ??? 600V
Documents:
Display Specification
| Display | Digital |
POWER
| AC Current | 60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 – 65Hz] ±2.0%rdg±5dgt [40 – 1kHz] |
| AC Voltage | 60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 – 65Hz] (600V) ±1.5%rdg±4dgt [40 – 1kHz] (60/600V) |
| DC Voltage | 60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V) |
Summary
| Capacitance test | 1.000/10.00/100.0μF ±3.0%rdg±15dgt(1μF) ±3.0%rdg±10dgt(10/100μF) |
| Conductor size | φ33mm max. |
| Continuity buzzer | 600Ω (Buzzer sounds below 90Ω) |
| Diode test | 2.000V ±4%rdg±5dgt Open-circuit voltage:<3.5V |
| Height | 36 mm |
| Length | 204 mm |
| Power Source | R03/LR03(AAA)(1.5V)x2 |
General Specification
| Basic accuracy | 1.5 % |
| Measurement type | True RMS |
| Resistance | 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ(Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ) ±3.0%rdg±3dgt (6MΩ) ±5.0%rdg±3dgt (40MΩ) |
| Voltage metering | AC |
| Width | 81 mm |
WIRELESS FEATURES
| Frequency Range | 1000 Hz – 10 kHz |
