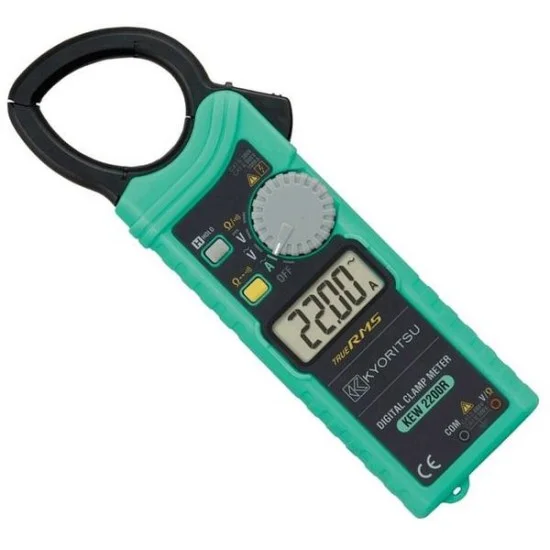

The latest Kyoritsu KEW 2200R AC Digital Clamp Meter price in Pakistan is Rs. 18,000/- updated on June 22, 2026.
OVERVIEW:
- The very light and easy-to-current pliers KEW-2200R enables accurate measurements at a very high display resolution. The tear-drop shape also allows easy pincer grasp the ladder even in cramped environments.
Features:
- Ultra slim and lightweight Handy design
- Ø33mm Tear Drop Jaw easy to use in tight places
- 1000A AC Clamp Meter
- DMM function ACV, DCV, Ω, Continuity Buzzer
- Fuseless electronic protection on ‘Ω/Continuity Buzzer’ up to 600V
- Safety Standard IEC 61010-1, 61010-2-032 CAT IV 300V / CAT III 600V
Documents:
POWER
| AC Current | 40.00/400.0/1000A (Auto-ranging) ±1.5%rdg±5dgt (45 – 65Hz) ±2.0%rdg±5dgt (40 – 1kHz) |
| DC Voltage | 400.0mV/4.000/40.00/400.0/600V (Auto-ranging) ±1.0%rdg±3dgt (400mV range is excluded.) |
Summary
| Continuity buzzer | buzzer sounds below 50±30Ω |
| AC Voltage | 4.000/40.00/400.0/600V (Auto-ranging) ±1.8%rdg±7dgt (45 – 65Hz) ±2.3%rdg±8dgt (65 – 500Hz) |
| Power Source | R03/LR03 (AAA) (1.5V) × 2 *continuous measuring time: approx. 120 hours (Auto power off: approx. 10 minutes) |
General Specification
| Resistance | 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging) ±2.0%rdg±4dgt (0 – 400kΩ) ±4.0%rdg±4dgt (4MΩ) ±8.0%rdg±4dgt (40MΩ) |
| Weight | 120g |
| Dimensions | 190(L) × 68(W) × 20(D)mm |
