Earth & Insulation Tester, Industrial Meter, Kyoritsu

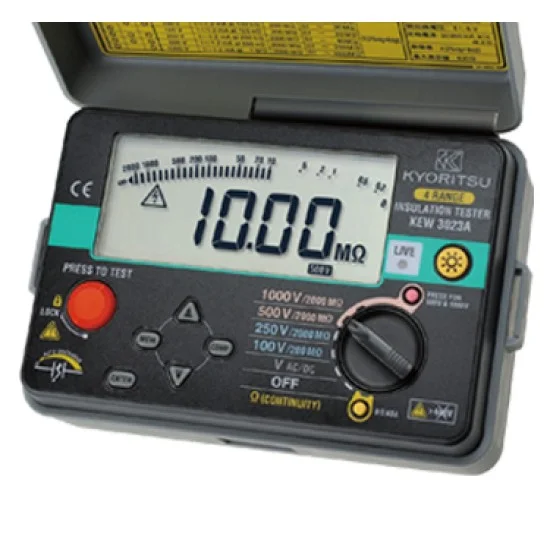

kyoritsu Kew 3023A Digital Insulation
₨55,000.00
The latest kyoritsu Kew 3023A Digital Insulation price in Pakistan is Rs. 55,000/- updated on September 1, 2026.
OVERVIEW:
- Fast response and quick insulation test.
- 3 functions in one unit, insulation test with 4 voltage ranges,
- continuity test, AC voltage measurement
- 200mA measuring current on continuity testing
- Comparator function with PASS / FAIL and buzzer
- 0Ω adjustment at continuity measuring range
- Memory function up to 99 data
- Backlight LCD provides easy reading in dark locations
- Safety lock system prevents an erroneous operation
- on 500 and 1000 Volt ranges
- Safety standard IEC 61010-01 CAT III 600V
Documents:
Computers Specs
| Rated Current | DC 1 – 1.2mA |
Summary
| Measuring range | 4.000/40.00/200.0MΩ (100V) |
| Weight | 600g approx |
| Test Voltage | 100/250/500/1000V |
| Power Source | R6 × 6 or LR6 × 6 |
General Specification
| AC voltage range | AC 20 – 600V (50/60Hz) DC -20 – -600V/+20 – +600V |
| Accuracy | ±2%rdg±6dgt |
| Mid-scale value | 5MΩ (100/250V) 50MΩ (500/1000V) |
| Dimensions | 105(L) × 158(W) × 70(D)mm |
