Earth & Insulation Tester, Industrial Meter, Kyoritsu

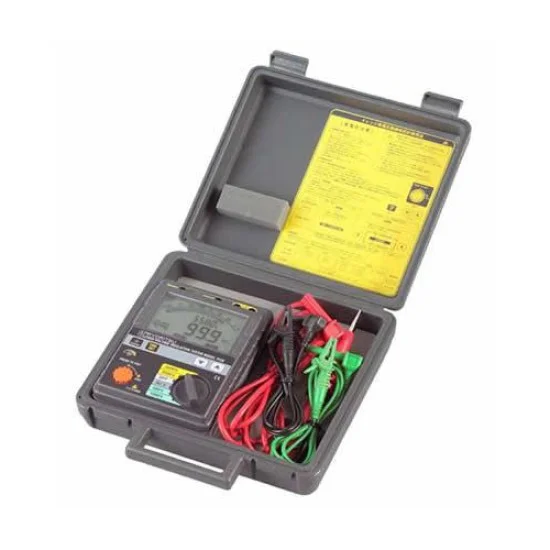

KYORITSU KEW 3125A High Voltage Insulation Tester
₨190,000.00
The latest KYORITSU KEW 3125A High Voltage Insulation Tester price in Pakistan is Rs. 190,000/- updated on August 31, 2026.
FEATURES:
- Insulation Resistance up to 1TΩ
- Short-Circuit Current up to 1.5mA
- Wide Test Voltage from 250V to 5000V
- Diagnosis Function of PI and DAR
- Newly-designed alligator clip
- It comes with a tough hard case
- Filter function reduces noise interference for obtaining stable measurement
- Large display with Bar Graph indication and backlight
- Live voltage warning
- Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V
Documents:
KYORITSU KEW 3125A High Voltage Insulation Tester Data Sheet.pdf
Computers Specs
| Rated Voltage | (Insulation resistance) 250V, 500V, 1000V, 2500V, 5000V |
Summary
| Applicable standards | IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2 |
| Included Accessories | 7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m), 8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case), LR14 (Alkaline battery size C) × 8, Instruction manual |
| Optional Accessories | 7168A (Line probe with alligator clip: 3m), 7253 (Longer line probe with alligator clip: 15m), 8302 (Adaptor for recorder) |
| Accuracy | (Insulation Resistance) 0.0 – 100.0MΩ ±5%rdg±3dgt, 0.0 – 99.9MΩ 80 – 1000M Ω ±5%rdg±3dgt, 0.0 – 99.9MΩ 80 – 999MΩ 0.80 – 2.00G Ω ±5%rdg±3dgt, 0.0 – 99.9MΩ 80 – 999MΩ 0.80 – 9.99GΩ 8.0 – 100.0GΩ ±5%rdg±3dgt, 0.0 – 99.9MΩ 80 – 999MΩ 0.80 – 9.99GΩ 8.0 – 99.9GΩ 80 – 1000GΩ ±5%rdg±3dgt ±20%rdg (100GΩ or more) (Voltage measurement) ±2%rdg±3dgt (Output voltage) ±10%, -10 – +20%, 0 – +20% |
| Measuring range | (Voltage measurement) AC: 30 – 600V (50/60Hz), DC: ±30 – ±600V |
| Weight | 3125A: 1.9kg approx. (including batteries) 4kg approx. (including accessories) |
General Specification
| Dimensions | 177 (L) × 226 (W) × 100 (D) mm 300 (L) × 315 (W) × 125 (D) mm (Hard case) |
