Earth & Insulation Tester, Industrial Meter, Kyoritsu

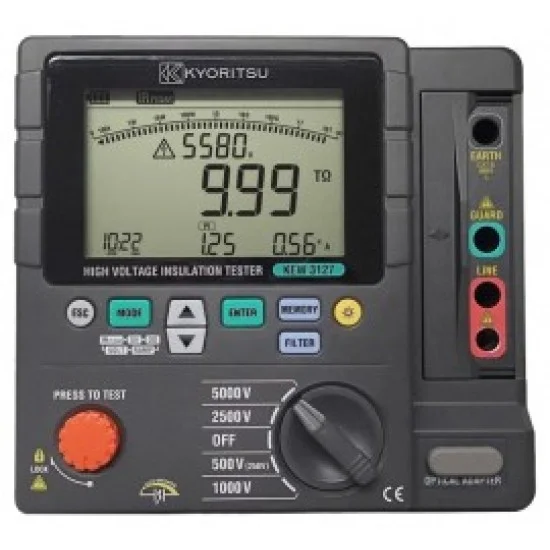

KYORITSU KEW 3127 High Voltage Insulation Testers
₨385,000.00
The latest KYORITSU KEW 3127 High Voltage Insulation Testers price in Pakistan is Rs. 385,000/- updated on August 31, 2026.
FEATURES:
- Insulation Resistance up to 10TΩ
- Short-Circuit Current up to 5mA
- Wide Test Voltage from 250V to 5000V
- Diagnostic Insulation Tests: IR, PI, DAR, DD, SV, RAMP (Breakdown and Burn modes), Capacitance, Leakage Current
- Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android device
- Memory and Logging functions
- Filter function reduces noise interference for obtaining stable measurements
- Large backlight display with Bar-Graph indication
- Robust design for field use with IP65 (lid closed)
- Powered by rechargeable battery
- Safety Standard IEC 61010-1 CAT Ⅳ 600V
Documents:
KYORITSU KEW 3127 High Voltage Insulation Testers Data Sheet.pdf
Summary
| communication interface | Bluetooth: Ver2.1 + EDR Class2, USB: Ver1.1 |
| Measuring range | AC: 30 – 600V (50/60Hz), DC: ±30 – ±600V – 0.00nA – 5.50mA |
| Accuracy | ±2%rdg±3dgt |
UC100
| Standards | IEC 61010-1, 61010-2-030 CAT Ⅳ 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2 |
General Specification
| Power source | Rechargeable Battery (Lead-acid Battery) 12V (*3) Charging power: DC 15VA MAX |
| weight | 3127: 4kg Approx. (including battery), Total: 8kg Approx. (including Accessories) |
| Dimensions | 208 (L) × 225 (W) × 130 (D) mm 380 (L) × 430 (W) × 154 (D) mm (Hard case) |
