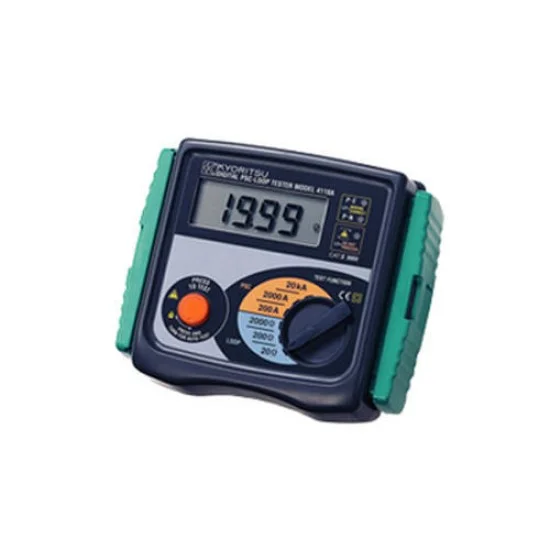

The latest Kyoritsu Kew 4118A Digital Loop Tester price in Pakistan is Call for Price updated on June 21, 2026.
OVERVIEW:
- Custom microprocessor controlled for highest accuracy and reliability.
- 3 LEDs for checking correct wiring status.
- 15mA LOOP measurement:
- LOOP impedance 2000Ω range measurement is carried out with low test current (15mA).
- The current will not cause tripping out involved RCD even the one with the lowest nominal differential current (30mA).
- Direct reading of Prospective Short Circuit Current (PSC).
- Safe voltage measurement function.
- Large custom digital display readout on all models.
- Measure low loop resistances(resolution of 0.01Ω)
- Automatic lock-out if test resister overheats.
- Large custom digital display readout .
- Visual indication of reversed phase and neutral wiring at socket.
- Designed to IP54 Rating
- Complies with IEC 61557
Documents:
Summary
| Operating Voltage | 230V+10% -15% (195V – 253V) 50Hz |
HARDWARE FEATURES
| Weight | 750g approx. |
General Specification
| AC Test Current | 20Ω 25A 200Ω 2.3A 2000Ω 15mA |
| Loop Impedance Accuracy | ±2%rdg±4dgt |
| Loop Impedance Ranges | 20/200/2000Ω |
| PSC Ranges | 200A (2.3A 40ms) 2000A (25A 20ms) 20kA (25A 20ms) |
| PSC Ranges Accuracy | Consider accuracy of Loop impedance |
| Voltage | 110V-260V ±2%rdg±4dgt |
| Dimension | 167(L) Ă— 185(W) Ă— 89(D)mm |
