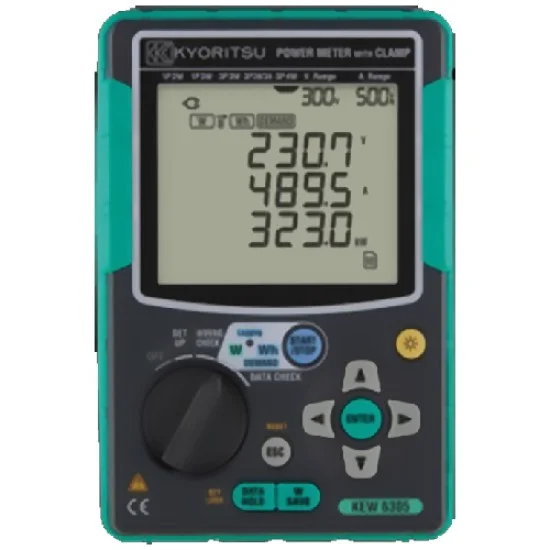

The latest KYORITSU KEW 6305 Power Meter price in Pakistan is Rs. 780,000/- updated on August 31, 2026.
FEATURES:
- Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
- Voltage, Current, Power Factor and Frequency measurements
- Power analysis (Active, Apparent and Reactive power)
- Energy analysis (Active, Apparent and Reactive power)
- Active power accuracy: ±0.3%rdg±0.2%f.s.
- Automatic wiring check function to prevent incorrect connections
- Large memory capability (2GB) using built-in SD card interface
- Real-time & remote measurements using Android application
- synchronous measurements between two units of KEW 6305
- Wide selection of clamp sensors allow measurements from 0.1A to 3000A
- The instrument automatically recognizes what kind of clamp sensor is connected to it
- Windows software for data analysis and setting via USB port or Bluetooth
Documents:
Display Specification
| Display Area | 5 – 130% of each range(Voltage) 1 – 130% of each range(Current) |
Summary
| Accuracy precondition | PF=1, Sine wave, 45 – 65Hz, 23ºC±5ºC |
| Applicable standards | IEC 61010-1 CAT III 600V |
| communication interface | USB, Bluetooth |
| Crest factor | Voltage: up to 2.5, Current: up to 3.0 (with 90% fs or less) |
| Current accuracy | ±0.2%rdg±0.2%f.s. + Accuracy of Clamp sensor (sine wave, 45 – 65Hz) (*) +1%f.s. at the lowest range |
| Current range | 8128 ( 50A type ) : 1.000 / 5.000 / 10.00 / 25.00 / 50.00A / auto 8127 ( 100A type ) : 2.000 / 10.00 / 20.00 / 50.00 / 100.0A / auto 8126 ( 200A type ) : 4.000 / 20.00 / 40.00 / 100.0 / 200.0A / auto 8125 ( 500A type ) : 10.00 / 50.00 / 100.0 / 250.0 / 500.0A / auto 8124 ( 1000A type ) : 50.00 / 100.0 / 200.0 / 500.0 / 1000A / auto 8130 ( 1000A type ) : 50.00 / 100.0 / 200.0 / 500.0 / 1000A / auto 8129 ( 3000A type ) : 300.0 / 1000 / 3000A 8133 ( 3000A type ) : 60.00 / 300.0 / 600.0 / 1500 / 3000A / auto |
| Display update period | 1 second |
| Effect of power factor | Active power: ±1.0%rdg cos θ=±0.5 (PF=1) |
| Frequency meter accuracy | ±3dgt |
| Frequency meter range | 40.0 – 70.0Hz |
| Included Accessories | 7141B (Voltage test lead set: 4pcs) 7148 (USB cable) 7170 (Power cord) 9125 (Carrying case) 8326-02 (SD card 2GB) KEW WINDOWS (PC Software) Battery (LR6)×6 Quick manual |
| Measurements | Voltage, Current, Frequency, Active power |
| Operating temperature & humidity range | 0 – +50ºC, less than 85%RH (without condensation) |
| Optional Accessories | 8124, 8125, 8126, 8127, 8128 (Clamp sensor) 8129/8130/8133 (Flexible clamp sensor) 8312 (Power supply adaptor) 9132 (Magnetic carrying case) |
| Parameters | Apparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Power factor (cos θ), Neutral current |
| PC card interface | SD card (2GB) |
| Storage temperature & humidity range | -20 – +60ºC, less than 85%RH (without condensation) |
| Voltage accuracy | ±0.2%rdg±0.2%f.s. (sine wave, 45 – 65Hz) |
| Voltage range | 150.0 / 300.0 / 600.0V |
| Wiring connections | 1P2W, 1P3W, 3P3W, 3P3W3A, 3P4W |
| Power Consumption | 10VA (max.) |
| Weight | Approx. 800g (including batteries) |
HARDWARE FEATURES
| Power Supply | (AC Line) AC100 – 240V±10% (50/60Hz), (DC battery) LR6 or Ni-MH (HR-15-51) ×6 (Battery charger not included), Battery life approx. 15h (LR6) |
General Specification
| Dimensions | 175(L)×120(W)×65(D) mm |
