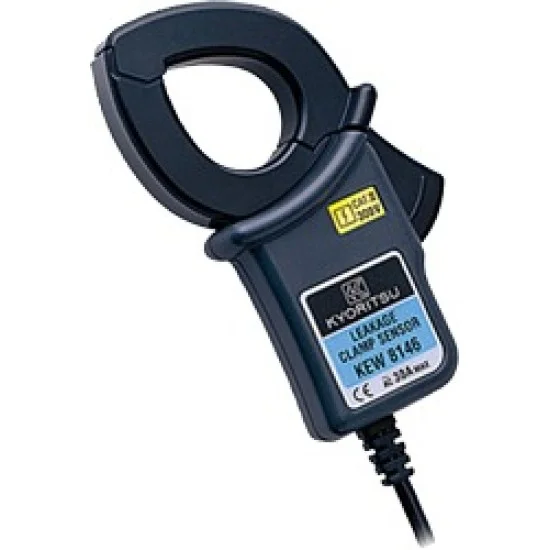

Kyoritsu KEW 8146 Leakage & Load Current Clamp Sensor
₨36,500.00
The latest Kyoritsu KEW 8146 Leakage & Load Current Clamp Sensor price in Pakistan is Rs. 36,500/- updated on August 31, 2026.
OVERVIEW:
- Ø24mm
- Applicable model : 5010, 5020, 6315
- Cannot be used for power measurement.
Documents:
Kyoritsu KEW 8146 Leakage & Load Current Clamp Sensor Data Sheet.pdf
Computers Specs
| Rated Current | AC 30A |
Summary
| Applicable standards | IEC 61010-1, IEC 61010-2-032 CAT III 300V pollution degree 2, IEC 61326 |
General Specification
| Accuracy | 0 – 15A ±1.0%rdg±0.1mV (50/60Hz) ±2.0%rdg±0.2mV (40Hz – 1kHz) 15 – 30A ±5.0%rdg (50/60Hz) ±10.0%rdg (45Hz – 1kHz) |
| Cable Length | Approx. 2m |
| Humidity Range | less than 85% RH (without condensation) |
| Operating Temperature | 0 – 50ºC |
| Output connector | MINI DIN 6pin |
| Output Impedance | Approx. 90Ω |
| Weight | Approx.150g |
| Dimensions | 100(L) x 60(W) x 26(D) mm |
| Output Voltage | AC 1500mV/30A (AC 50mV/A) |
