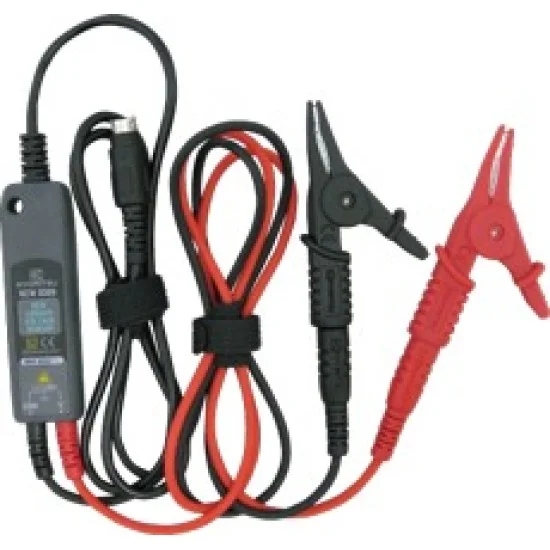

Kyoritsu KEW 8309 Voltage Sensor
₨17,000.00
The latest Kyoritsu KEW 8309 Voltage Sensor price in Pakistan is Rs. 17,000/- updated on August 30, 2026.
OVERVIEW:
- Floating voltage can be measured
Floating voltage:
- phase to phase voltage not grounded
Documents:
Summary
| Applicable standards | IEC/EN 61010-1:2001 CAT III 600V, pollution degree 2 IEC/EN 61010-031:2002, IEC 61326 (EMC) |
HARDWARE FEATURES
| Input Impedance | Approx. 3.4MΩ |
General Specification
| Accuracy | ±1.0%rdg±0.1mV |
| Frequency Range | 50/60Hz |
| Humidity Range | relative humidity 85% or less (no condensation) |
| Input system | Differential input (can measure floating voltage) |
| Measuring ranges | 6 – 600V |
| Operating Temperature | -10 – 50ºC |
| Output Impedance | Approx. 180Ω |
| Weight | 135g |
| Input Voltage | AC 600Vrms(sin), 848.4Vpeak |
| Dimensions | 87(L)×26(W)×17(D)mm |
| Output Voltage | AC 0 – 60mV (output/input: 0.1mV/V) |
