Clamp Meters, Industrial Meter, Kyoritsu, Multi Meter & Clamp Meter

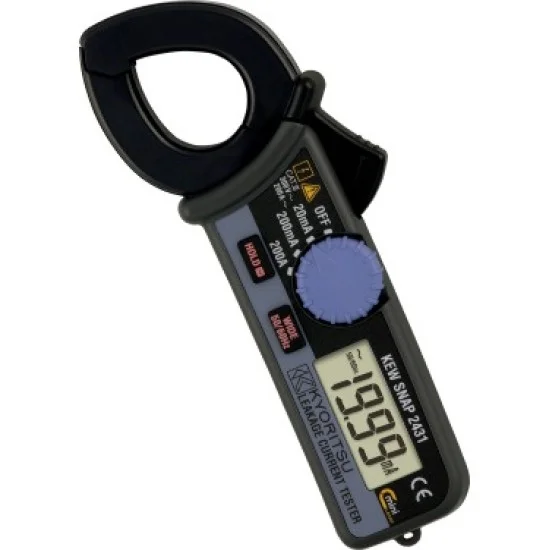

Kyoritsu KEW SNAP 2431 Leakage Clamp Meter
₨27,500.00
The latest Kyoritsu KEW SNAP 2431 Leakage Clamp Meter price in Pakistan is Rs. 27,500/- updated on August 30, 2026.
OVERVIEW:
- Explore w11stop.com, Get the latest Kyoritsu Instruments & other electronic components at a discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Kyoritsu Instruments at official prices from distributors and dealers in Pakistan.
Features:
- Frequency Selector Switch to eliminate the effect of harmonics.
- Three AC current ranges 20mA/200mA/200A.
- Rotary switch for easy one finger power-on and range selection.
- Resolution 0.01mA.
Documents:
Summary
| Conductor size | Ø24mm max. |
| Safety Standard | IEC 61010-1 CAT III 300V | IEC 61010-2-032 |
| Power Source | LR-44 (1.5V)× 2 |
General Specification
| Accuracy | A (50/60Hz) : 20/200mA/200A | ±3%rdg±5dgt (20/200mA/100A)| ±5%rdg±5dgt (200A) | A (WIDE): 20/200mA/200A | ±2%rdg±4dgt [50/60Hz] (20/200mA/0 – 100A) | ±5%rdg±6dgt [40 – 400Hz] (20/200mA/0 – 100A) | ±5%rdg±4dgt [50/60Hz] (100.1 – 200A) |
| Dimensions | 149(L)× 60(W) × 26(D)mm |
| Effect of External Stray Magnetic Field | Ø15mm 100A: 10mA AC max. |
| Frequency response | 40 – 400Hz |
| Weight | 120g approx. |
