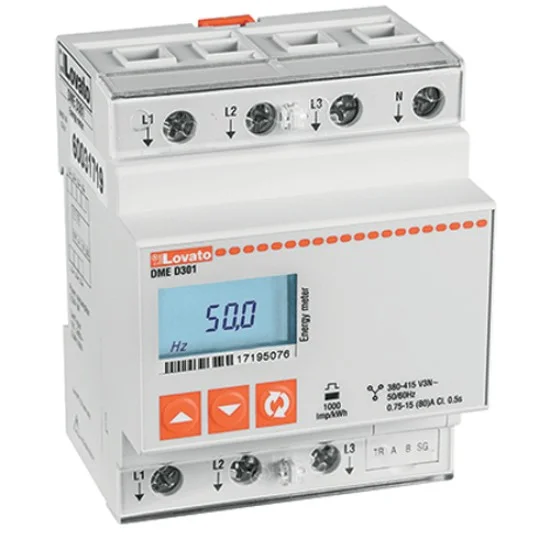

Lovato Electric DME D301 3-Phase Type Energy Meter

The latest Lovato Electric DME D301 3-Phase Type Energy Meter price in Pakistan is Rs. 230,000/- updated on October 20, 2026.

You can buy the Lovato Electric DME D301 3-Phase Type Energy Meter online at Roshanex in Pakistan.

OVERVIEW:

• Measure the modular way! DMED301 is the new energy meter of the DMED series, suitable for 3ph systems, direct connected up to 80A c/w Rs. 485. Monitoring and supervision of measures such as: total and partial active energy, total and partial reactive energy, voltage, current, active and reactive power, power factor and many more. It’s compact, modular and it can quickly be mounted on a DIN rail.

Features:

• 4U modular housing
• Direct connection up to 80A
• Active energy measurement and accuracy: IEC/EN 62053-22 class 0,5s
• Backlight LCD display
• Counter with 6+1 digits
• 3 buttons for measure selection and programming
• Total active and reactive energy measurements
• Clearable partial energy measurements
• 3 hour counters
• Metrological led on the front
• Rs. 485 communication port – Modbus protocol, Xpress and Synergy compatible
• Two digital inputs for tariff selection

Documents:

Lovato Electric DME D301 3-Phase Type Energy Meter Data Sheet.pdf
