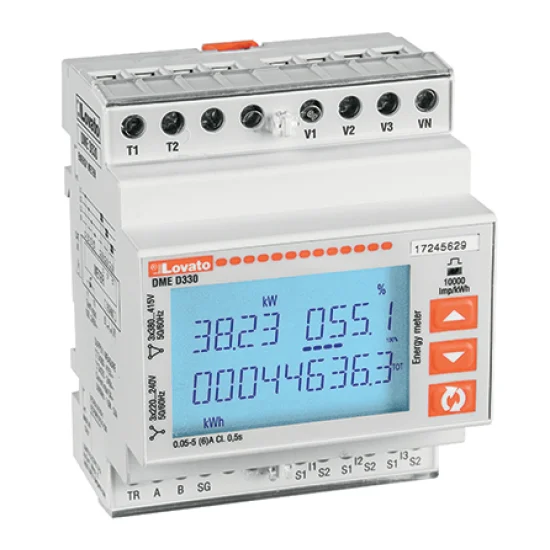

Lovato Electric DME D330 Digital Meter

The latest Lovato Electric DME D330 Digital Meter price in Pakistan is Rs. 485/- updated on June 24, 2026.

OVERVIEW:

• Digital Energy Meter (Dual Tariff) with Multi Measurements With ICON type large LCD display, with white backlight. Energy meter, three-phase with or without neutral, nonexpandable, connection by ct /5a secondary, 4u, Rs. 485 interface, multi-measurements.

Special Features:

• LCD Multi Function.
• Current connection by CT
• Rated cureent input 5-1A.
• Current / Voltage Accuracy 0.5%
• Active Energy Measurement Class 1, (0.5S)DME D330
• Multi-Measurementts, 3-Phase + N
• 3 function keys
• Tariff selection input (2 tariffs)
• 2 Programmable with EXM…modules (DME D310T2)
• 4-Module housing.

Main Measurements And Functions Include:

• V, A, KW, KVAR, KVA, PF, Hz, KWH, KVARH.
• Total harmonic distortion (THD) : voltage and Current (DME D330).
• Maximum demand (MDI) of Power and Current values.
• Active Power Un-balance (Spread in KW between L1-L2, L2-L3, L3-L1).
• Voltage Asymmetry (Phase to phase and Phase voltages).
• Current Asymmetry.
• Energy Counters (Active, Reactive, Import & Export, apparent energy Total & Partial).
• Hour Counter (Total & partial).
