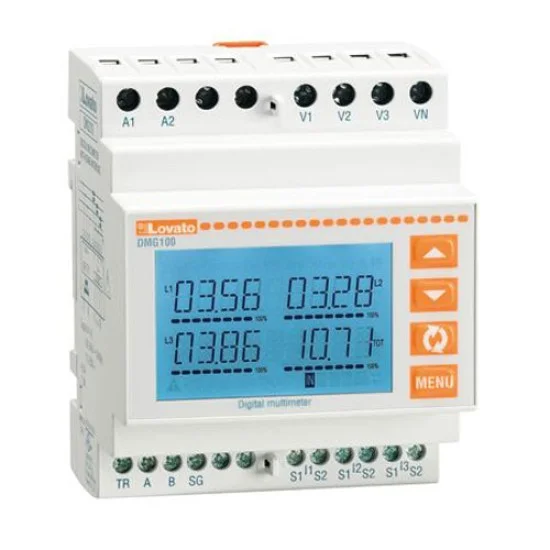

Lovato Electric DMG100 Digital Energy Meter & Electrical Power Analyzer

The latest Lovato Electric DMG100 Digital Energy Meter & Electrical Power Analyzer price in Pakistan is Rs. 160,000/- updated on September 9, 2026.

OVERVIEW:

• Digital Energy Meter & Electrical Power Analyzer With ICOn type large LCD display, with whit backlight.
• Modular lcd multimeter, non expandable, backlight lcd icon display, auxiliary supply 100-240vac/115-250vdc. Multilanguage: italian, english, french, german, spanish and portuguese
• The DMG100 and DMG110 are 3 phase digital multimeters designed to combine the utmost ease of use with a wide range of advanced functions. The backlit LCD display permits a clear and intuitive user interface.
• The DMG110 also features an isolated Rs. 485 communication interface with Modbus protocol to permit supervision.

Main Measurements And Functions:

• V, A, KW, KVAR, KVA, PF, Hz, KWH, KVARH.
• Voltage: phase, line and system values
• Current: phase values (neutral current calculated)
• Power: apparent, active and reactive phase and total values
• Power Factor (PF)per phase and total
• Frequency of measured voltage value
• HIGH-LOW-AVERAGE value functions for all measurements
• Maximum demand of power and current values
• Voltage and current asymmetry
• Total harmonic distortion (THD): voltage and current
• Energy meters with programmable tariff functions
• Hour counter for programmable total and partial hours.

Features:

• 4U (72 mm) modular housing
• DIN Rail mounting
• Backlit LCD display
• 4 navigation buttons for functions and settings
• High-accuracy TRMS measurement
• Vast range of available measurements, including Voltage and Current THD and Harmonic analysis
• Wide range of auxiliary power supply (100-240 V ac)
• 2-level password protection for settings
• Back up copy of original settings
• Fitting does not require tools
• Texts in 6 languages
• IP40 (front) protection.
