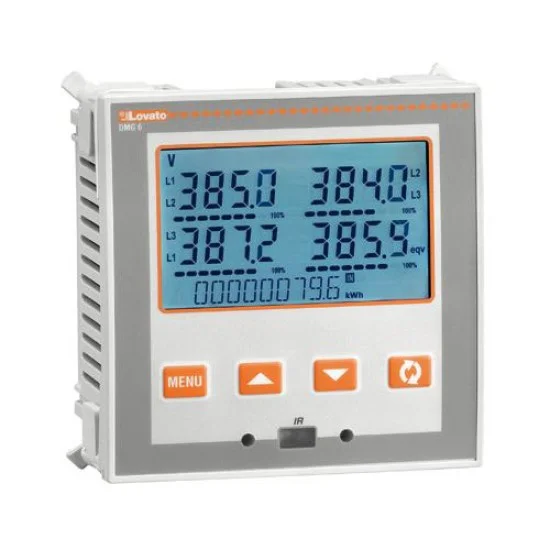

Lovato Electric DMG610 Digital Energy Meter & Electrical Power Analyzer
₨ 215,000
The latest Lovato Electric DMG610 Digital Energy Meter & Electrical Power Analyzer price in Pakistan is Rs. 215,000/- updated on October 21, 2026.
You can buy the Lovato Electric DMG610 Digital Energy Meter & Electrical Power online at Roshanex in Pakistan.
Overview
- Digital Energy Meter & Electrical Power Analyzer With ICOn type large LCD display, with whit backlight.DMG 600 and DMG 610 digital multimeter are capable of viewing the measurements with high accuracy on the wide graphic LCD, which allow controlling energy distribution networks.
Feature
- Backlit LCD icon display
- Input current: CT – 1A or 5A
- Voltage measurement: 50 – 720 VAC L-L
- Auxiliary power supply: 90 – 484 VAC / 94 – 300 VDC
- True RMS measurements of voltage and current values
- Harmonic analysis of voltage and current up to the 15° order
- Also easy and intuitive menu navigation
- LCD display with text in 5 languages
- Expandability with EXP10xx modules (stock-no 833-2706)
- USB connectivity with the CX01 dongle (stock-no. 833-2730)
- Wi-Fi connectivity with the CX02 dongle (stock-no. 833-2734)
- High measurement accuracy
- Wide range for power supply, measurements and temperature
- Energy meters for active, reactive, apparent partial and total values, per phase and system values
- Hour counter for programmable total and partial hours
- Also suitable for LV, MV and HV electric systems and installations
- Power supply 100 – 440 Vac
- Flush-mount housing 96 x 96 mm
- IP54 protection on the front
Main Measurements And Functions
- V, A, KW, KVAR, KVA, PF, Hz, KWH, KVARH.
- Voltage: phase, line and system values
- Current: phase values (neutral current calculated)
- Power: apparent, active and reactive phase and total values
- Power Factor (PF)per phase and total
- Frequency of measured voltage value
- HIGH-LOW-AVERAGE value functions for all measurements
- Maximum demand of power and current values
- Voltage and current asymmetry
- Total harmonic distortion (THD): voltage and current
- Energy meters with programmable tariff functions
- Hour counter for programmable total and partial hours.
Also, you can browse more Lovato products at Roshanex. In addition, our team can help you choose the right model before you order.
Display Specification
| Display | Kind : LCD |
POWER
| AC Current | Measuring Accuracy : ±0,5% |
| AC Voltage | Measuring Accuracy : ±0,5% |
Summary
| Measurement | frequency, energy, reactive power, active power, apparent power, AC voltage, AC current, power factor |
| AC Voltage | Measuring Range : 50…720V |
| AC Current | Measuring Range : 0,01…6A |
| Active Power | Measuring Accuracy : ±1% |
| Weight | 320g. |
HARDWARE FEATURES
| Network | Kind : three-phase |
| Power Supply | 100…440VAC, 120…250VDC |
TECHNICAL SPECIFICATION
| Communication | Protocol : MODBUS RTU, TCP |
| IP Rating | IP20 at terminal side, IP54 (from the front) |
General Specification
| Frequency | Measuring Range : 45…65Hz |
| Model | DMG610. |
| Power | Accuracy : ±1% f.s |
| Type | panel power meter |
