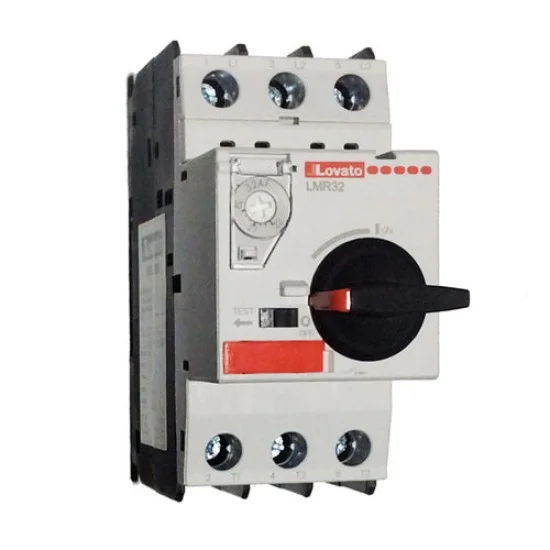

Lovato Electric LMR32 1000 6 ~ 10A 3-Pole MPCB
,

Lovato Electric LMR32 1000 6 ~ 10A 3-Pole MPCB

Compare

₨43,000.00

The latest Lovato Electric LMR32 1000 6 ~ 10A 3-Pole MPCB price in Pakistan is Rs. 43,000/- updated on June 24, 2026.

OVERVIEW:

  • Lovato LMR32 are combination motor controllers with high short-circuit interrupting capacity and equipped with thermal and magnetic trip releases. Motor control and protection, up to 15kW at 400V / 20HP 480V / 30HP 600V, are possible by choosing the suitable adjustment range, 0.1 to 32A. The LMR32 motor controllers have rotating handle operation and are suitable also as motor disconnect according to IEC/EN 60947/UL508 standards.Their high short-circuit rating allows to exclude protection fuses and/or circuit breakers on the majority of the installations.

Capacitance

Breaking capacity Operational short-circuit current breaking capacity (Ics) at 415V : 100KA.

Current AC

Maximum Breaking Capacity Maximum short-circuit current breaking capacity (Icu) 415V : 100KA.

Summary

Rating IP 20.
Weight 12.9808 OZ.

HARDWARE FEATURES

Number of Poles 3 Poles.

TECHNICAL SPECIFICATION

Thermal Trip 6 ~ 10A.

General Specification

Model LMR32 1000.
Phase 3 Phase.
Series LMR32.
Type Motor Protection Circuit Breaker With Thermal & Magnetic Protection.
