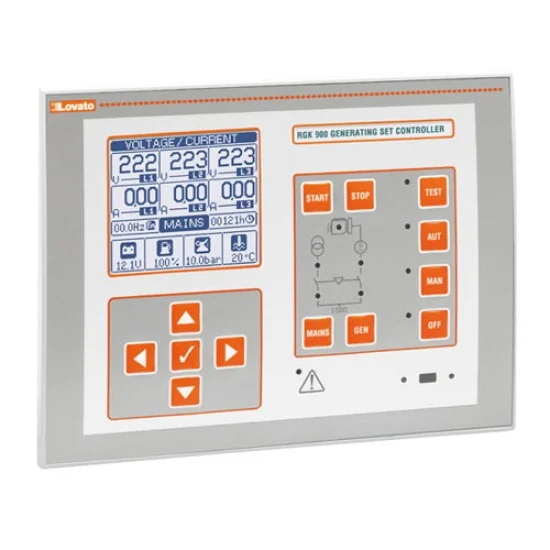

Lovato Electric RGK900SA Paralleling/Synchronising Controller

The latest Lovato Electric RGK900SA Paralleling/Synchronising Controller price in Pakistan is Rs. 1,550,000/- updated on June 24, 2026.

OVERVIEW:

• Paralleling control among generating sets. 12/24vdc, graphic lcd, Rs. 485 port and usb/optical and wi-fi point programming port on front. Expandable with exp… Modules..

Features:

• Stand Alone Function.
• Backlit icon type large LCD graphic display.
• RTC clock-calendar
• Current leakage control
• 400Hz frequency support
• 1 programmable analog input
• Customisable alarm text (2 alarms)
• Customisable alarm text (16 alarms)
• Non-volatile memory for event storage
• Rs. 485 communication (no Rs. 232 port)
• Modbus-TCP communication protocol
• Modbus-RTU and Modbus-ASCII protocols
• PLC logic for inputs, outputs and internal status
• Expandable with rear plug-in expansion modules
• Built-in buzzer, multi-level passwords, sleep function
• Neutral current measurement range: 0.050…6A or 1.2A
• Single, two and three phase voltage control L1-L2-L3-N
• Frequency measurement range: 45…65Hz or 360…440Hz
• NFC technology for parameter setup via smartphone or tablet
• IR programming port on front panel for communication with PC
• 2 analog outputs for engine speed control (governor) / voltage regulator (AVR)
• 1 analog resistance input for oil pressure / engine temperature or fuel level control
• 3 analog resistance input for oil pressure, engine temperature or fuel level control
