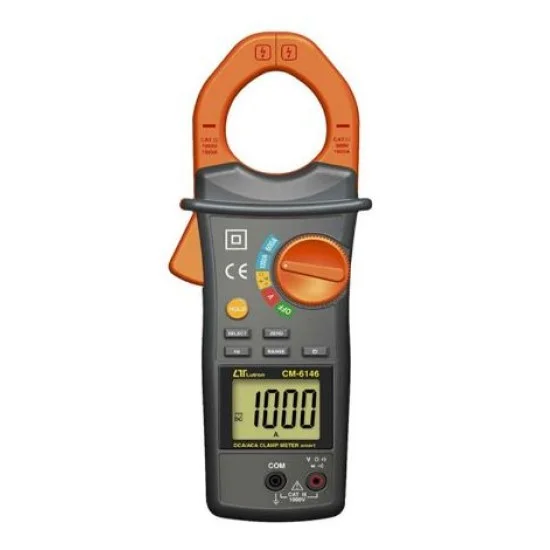

The latest Lutron CM-6146 Clamp Meter price in Pakistan is Rs. 68,000/- updated on September 8, 2026.
OVERVIEW:
- V: Smart ACV/DCV Automatically.
- Resistance, Diode, Continuity, Capacitance. Automatically.
- 600A : Smart DCA/ACA.
- 1000A : Smart DCA/ACA.
- Function keys: Select, Zero, Hz, Range, Hold.
- CAT III 1000V, CAT IV 600V.
- 32 mm measuring conductor size.
- Auto power off.
Documents:
POWER
| AC Voltage | 6 V/60 V/600 V/1000 V |
Summary
| DC Voltage | 600 mV /6 V/60 V/600 V /1000 V |
| Sampling Time | Approx. 0.5 to 1 second. |
Antenna
| Capacitance | 6 nF/60 nF/600 nF/6 uF/60 uF/600 uF |
| Frequency | 40 Hz to 1 KHz |
General Specification
| AC/DC Current | 600A/1000A |
| Diode | Short/non conductance, good/defect test |
| Operating Humidity | Max. 80% R.H. |
| Operating Temperature | 0 to 50 (32 to 122 ) |
| Power Consumption | Approx. DC 9.1 mA |
| weight | 373 g/0.82 LB ( w/o battery ). |
| Power Supply | DC 9 V battery 006P, MN1604 |
| Dimension | 241 x94 x 46 mm ( 9.5 x 3.7 x 1.8 inch ) |
