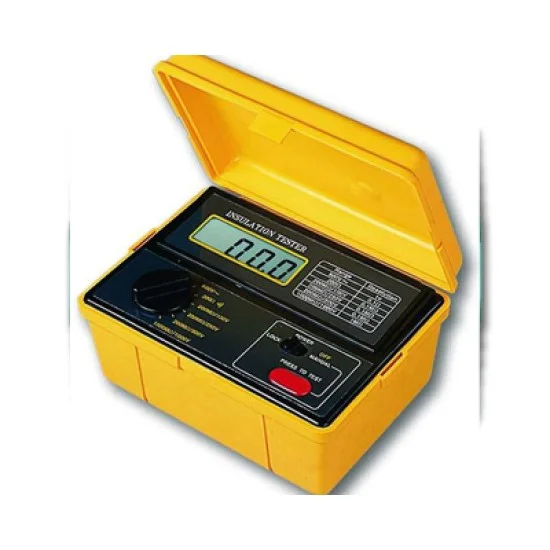

The latest Lutron DI-6300 Digital Insulation Tester price in Pakistan is Rs. 178,000/- updated on October 30, 2026.
You can buy the Lutron DI-6300 Digital Insulation Tester online at Roshanex in Pakistan.
FEATURES:
- Digital display, easy and correct read-out.
- Multi-function for insulation measurement of 200 Megohm (100V) 200 Megohm(250V), 200 Megohm(500V), 1000 Megohm(1000V).
- Build in the ACV & OHM measurement function.
- Precision 200 ohm range easy for measuring low resistance such as motor windings, relay coils etc.
- Insulation measurement with high drive current, short circuit current > 2.55 mA.
- 18mm (0.7′) large LCD display.
- Battery operating easily to carry with user.
- LCD display allows clear read-out even at bright place.
- LSI-circuit provides high reliability and durability.
- Built-in over-input and low battery indication.
- Overload protection for each range.
- Automatic zero adjust & automatic circuit discharge.
- Durable & portable housing case with the front protective cover.
Also, you can browse more Lutron products at Roshanex. In addition, our team can help you choose the right model before you order.
Display Specification
| Display | 18mm (0.7′) LCD (Liquid Crystal Display), Max indication 1999. |
Summary
| Sampling Time | 0.4 second. |
| Response Time | Megohm : Max. approx. 2.5 second. |
| Weight | 575 g ( 1.3 lb ). |
HARDWARE FEATURES
| Power Consumption | Approx. 100 mA (1000 Megohm /1000V range). Approx. 28 mA (200 Megohm/500V range). Approx. 28 mA (200 Megohm/250V range). Approx. 13 mA (200 Megohm/100V range). Approx. 10 mA (200 ohm/OHMS range). Approx. 1.6 mA (600 ACV/ACV range). |
TECHNICAL SPECIFICATION
| Operating Humidity | Less than 80% R.H |
General Specification
| Measurement | Insulation 200 Megohm/100V, 200 Megohm/250V, 200 Megohm/500V, 1000 Megohm/1000V. | ACV 600 ACV | OHMS 200 ohm |
| Operating Temperature | 0to 50 (0to 122 ) ℃ ℉ |
| Over Input | Indication of ‘ 1 ‘ . |
| Zero Adjustment | Automatic adjustment. |
| Power Supply | DC 9V (6 x 1.5V AA battery, recommended to use the alkaline or heavy duty battery) |
| Dimension | 160 x 120 x 85 mm (6.3 x 4.7 x 3.3 inch), with housing front cover. |
