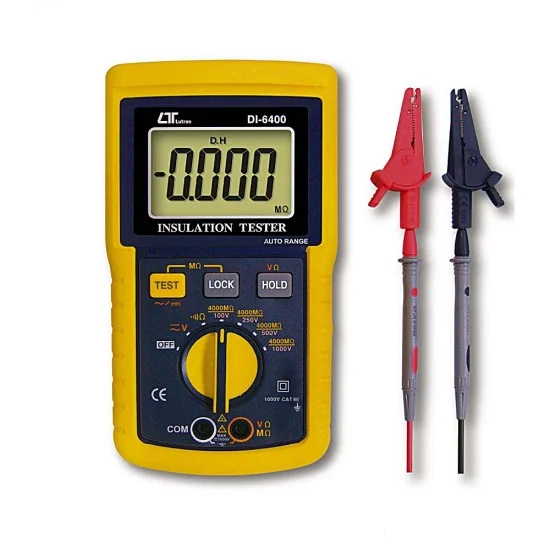

Lutron DI-6400 Digital Insulation Tester + DMM
₨198,000.00
The latest Lutron DI-6400 Digital Insulation Tester + DMM price in Pakistan is Rs. 198,000/- updated on September 10, 2026.
FEATURES:
- Portable Insulation Tester
- Auto-range and multi-function for insulation measurement
- Range: 4, 40, 400 and 4000 MegOhm (100V 250V, 500V, 1000V)
- Auto discharge function for safety
- Built-in ACV, DCV and OHMS measurement functions
- Lock and Test function for improved worker safety
- Large LCD display for clear read out
- Powered by 8 x AA batteries.
- Comes with Test leads and Heavy Duty alligator leads
- Auto-range and multi-function.
Insulation measurement ranges:
- 1. 4/40/400/4000 M ohm, auto range (250 V, 500 V, 1000 V)
- 2. 4/40/400 M ohm, auto range (100 V)
Build in the ACV & DCV & OHMS function :
- DCV (600.0 V), ACV (600.0 V),
- OHM (400.0 ohm, 4,000 ohm, auto range).
- CAT III 1000V.
- Automatic zero adjust & automatic circuit discharge.
- Lock & Test functions, safety and easy operation.
- Precision resistance measurement with auto-range, useful for measuring low resistance value such as motor windings, relay coils etc.
- A continuity beeper is equipped in OHM range.
- Jumbo LCD display allows clear read-out.
- LSI-circuit provides high reliability and durability.
- Built-in over-input and low battery indication.
- Battery operating easily to carry with user.
- Overload protection for each range.
- Durable & portable housing case with the front rubber protection cover.
- Heavy duty test leads with the alligators.
- RS-232/USB computer interface.
- Powered by AA DC 1.5 V X 8 batteries or DC 9V adapter.
Documents:
Lutron DI-6400 Digital Insulation Tester + DMM Data Sheet.pdf
Display Specification
| Display | 27 mm (1.06′) LCD (Liquid Crystal Display), Max. indication : 6100 ( V ), 4200 ( MΩ ), OHMS 4200 ( Ω ) |
Summary
| Weight | 819 g / 1.80 LB (includes 8 PCs batteries). |
| Response Time | 4000M ohm : Max. approx. 4.0 second. |
TECHNICAL SPECIFICATION
| Operating Humidity | Less than 80% R.H. |
| Sampling Time | 0.4 second. |
General Specification
| Measurement | Insulation : 4/40/400 MΩ /100 V Voltage 4/40/400/4000 MΩ /250 V 4/40/400/4000 MΩ /500 V 4/40/400/4000 MΩ /1000 V, DCV : 600.0 V | ACV : 600.0 V | OHM : 400.0/4000 Ω |
| Operating Temperature | 0 to 50 ( 0 to 122 ). |
| Over Input | Indication of ‘ – – – – ‘ . |
| Zero Adjustment | Automatic adjustment. |
| Power Supply | 1.5V AA ( UM-3 ) battery x 8 PCs, Alkaline or heavy duty battery. |
| Dimension | 225 x 125 x 64 mm (8.86 x 4.92 x 2.52 inch) |
